HK891
-
Type:
-

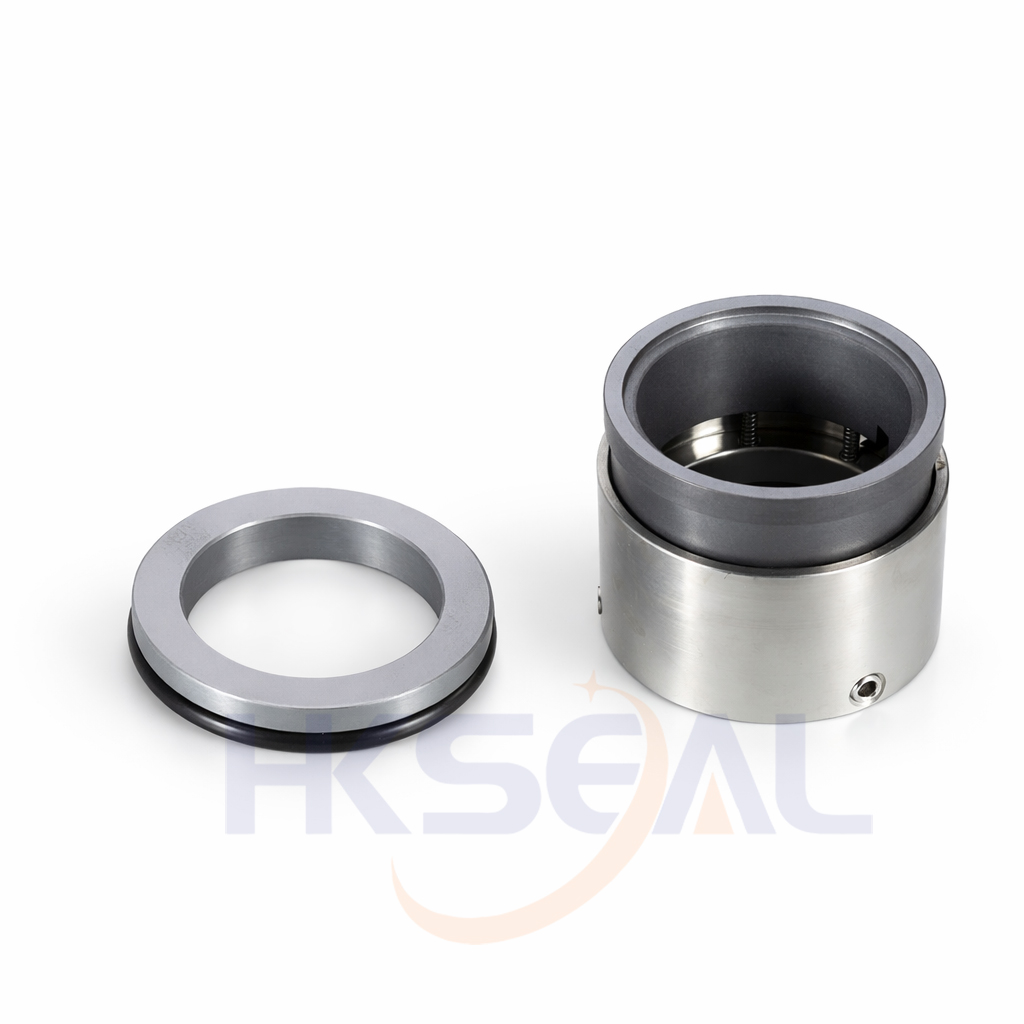

Multi Spring Mechanical Seal
Temperature:
-20℃ to +180℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
Size (Inch) |
D1 |
D2 |
D3 |
L1 |
L2 |
| (Metric) |
| 18 |
|
33 |
27 |
33.28 |
34.90 |
7.5 |
| 20 |
|
35 |
29 |
34.29 |
34.90 |
7.5 |
| 22 |
|
37 |
31 |
36.30 |
34.90 |
7.5 |
| 24 |
|
39 |
33 |
38.30 |
34.90 |
7.5 |
| 25 |
1.000 |
40 |
34 |
39.29 |
34.90 |
7.5 |
| 28 |
1.125 |
43 |
37 |
42.29 |
34.90 |
7.5 |
| 30 |
|
45 |
39 |
44.30 |
34.90 |
7.5 |
| 32 |
1.250 |
48 |
42 |
46.30 |
44.45 |
7.5 |
| 33 |
|
48 |
42 |
47.90 |
44.45 |
7.5 |
| 35 |
1.375 |
50 |
44 |
49.48 |
44.45 |
7.5 |
| 38 |
1.500 |
56 |
49 |
54.28 |
44.45 |
9.0 |
| 40 |
|
58 |
51 |
56.08 |
44.45 |
9.0 |
| 42 |
1.625 |
|
|
57.61 |
44.45 |
|
| 43 |
|
61 |
54 |
59.08 |
44.45 |
9.0 |
| 45 |
1.750 |
63 |
56 |
60.78 |
44.45 |
9.0 |
| 48 |
1.875 |
66 |
59 |
64.10 |
44.45 |
9.0 |
| 50 |
2.000 |
70 |
62 |
66.09 |
44.45 |
9.5 |
| 53 |
2.125 |
73 |
65 |
69.80 |
44.45 |
11.0 |
| 55 |
|
75 |
67 |
71.00 |
44.45 |
11.0 |
| 58 |
2.250 |
78 |
70 |
73.48 |
44.45 |
11.0 |
| 60 |
2.375 |
80 |
72 |
76.20 |
44.45 |
11.0 |
| 63 |
2.500 |
83 |
75 |
79.40 |
44.45 |
11.0 |
| 65 |
2.625 |
85 |
77 |
82.60 |
44.45 |
11.0 |
| 70 |
|
92 |
83 |
85.70 |
44.45 |
11.3 |
|
2.750 |
|
|
92.08 |
50.80 |
11.3 |
|
2.875 |
|
|
95.25 |
50.80 |
11.3 |
| 75 |
3.000 |
97 |
88 |
98.43 |
50.80 |
11.3 |
|
3.125 |
|
|
101.60 |
50.80 |
11.3 |
| 80 |
3.250 |
105 |
95 |
104.78 |
50.80 |
12.0 |
| 85 |
3.375 |
110 |
100 |
107.95 |
50.80 |
14.0 |
|
3.500 |
|
|
111.30 |
50.80 |
14.0 |
| 90 |
3.625 |
115 |
105 |
114.30 |
50.80 |
14.0 |
| 95 |
3.750 |
120 |
110 |
117.48 |
50.80 |
14.0 |
|
3.875 |
|
|
120.65 |
50.80 |
14.0 |
| 100 |
4.000 |
125 |
115 |
123.83 |
50.80 |
14.0 |
