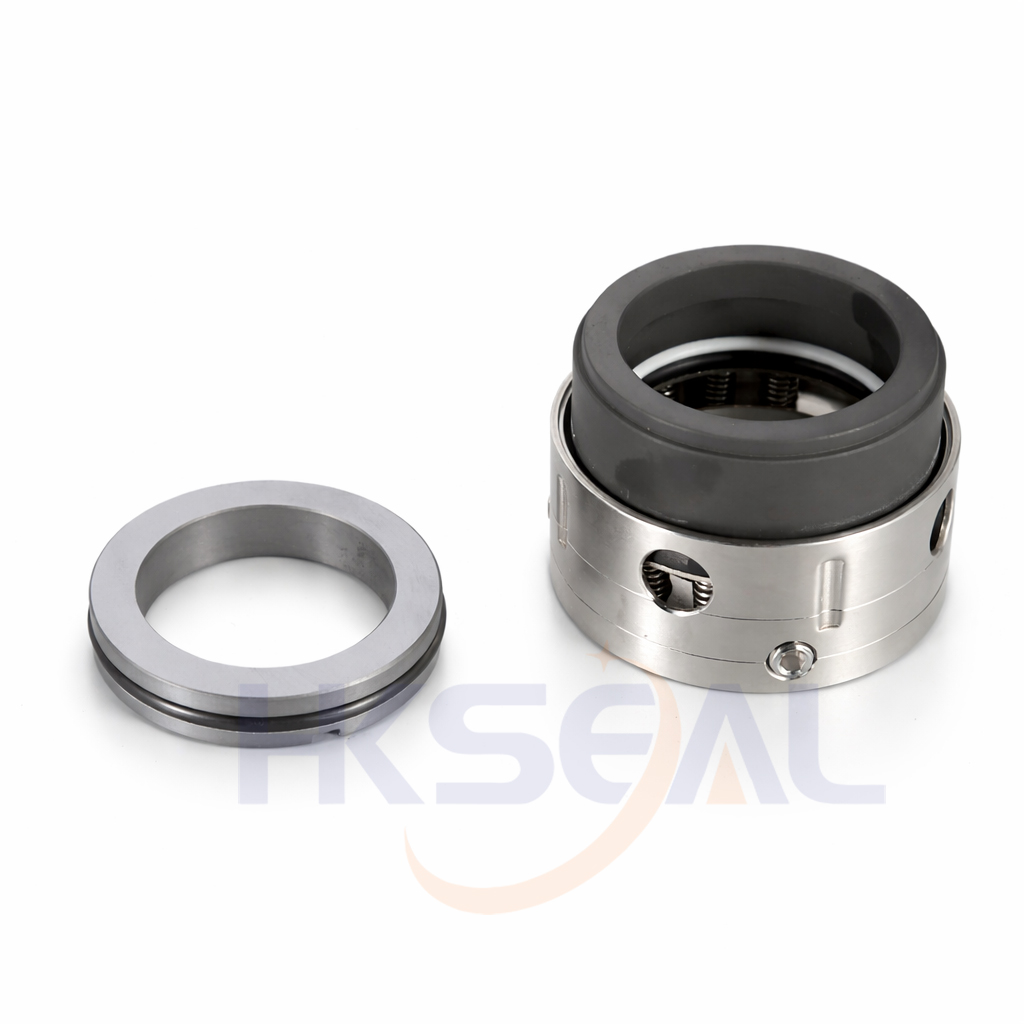

HK8B1
-
Type:
-
Multi Spring Mechanical Seal
- Replacement:
-
Vu1can 1609BS，AES M02S，Crane 8B1
Temperature:
-20℃ to +180℃
Pressure:
≤1.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
d0 |
d |
D1 |
D3 |
L1 |
L4 |
L6 |
| (Inch) |
| 1.000 |
25.40 |
22.20 |
41.28 |
39.67 |
33.32 |
11.10 |
8.00 |
| 1.125 |
28.58 |
25.40 |
44.45 |
42.85 |
34.93 |
11.10 |
7.90 |
| 1.250 |
31.75 |
28.50 |
47.63 |
47.63 |
34.93 |
11.10 |
7.90 |
| 1.375 |
34.93 |
28.50 |
50.80 |
50.80 |
36.50 |
11.10 |
8.70 |
| 1.500 |
38.10 |
31.70 |
53.98 |
53.98 |
36.50 |
11.10 |
8.70 |
| 1.625 |
41.28 |
34.90 |
60.33 |
60.33 |
44.45 |
12.70 |
8.70 |
| 1.750 |
44.45 |
38.10 |
63.50 |
63.50 |
44.45 |
12.70 |
9.50 |
| 1.875 |
47.63 |
41.20 |
66.68 |
66.68 |
44.45 |
12.70 |
9.50 |
| 2.000 |
50.80 |
44.40 |
69.65 |
69.85 |
44.45 |
12.70 |
9.50 |
| 2.125 |
53.98 |
47.60 |
76.20 |
76.20 |
52.37 |
14.27 |
11.10 |
| 2.250 |
57.15 |
50.80 |
79.38 |
79.38 |
52.37 |
14.27 |
11.10 |
| 2.375 |
60.33 |
53.90 |
82.55 |
82.55 |
52.37 |
14.27 |
11.10 |
| 2.500 |
63.50 |
57.10 |
85.73 |
85.73 |
52.37 |
14.27 |
11.10 |
| 2.625 |
66.68 |
60.30 |
85.73 |
88.90 |
52.37 |
15.88 |
11.10 |
| 2.750 |
69.85 |
63.50 |
88.90 |
92.08 |
52.37 |
15.88 |
11.10 |
| 2.875 |
73.03 |
66.60 |
95.25 |
95.25 |
52.37 |
15.88 |
11.10 |
| 3.000 |
76.20 |
69.80 |
98.63 |
96.82 |
52.37 |
15.88 |
11.10 |
| 3.125 |
79.38 |
73.00 |
101.60 |
100.00 |
52.37 |
19.84 |
11.10 |
| 3.250 |
82.55 |
76.20 |
104.78 |
104.78 |
52.37 |
19.84 |
14.30 |
| 3.375 |
85.73 |
79.30 |
107.95 |
107.95 |
52.37 |
19.84 |
14.30 |
| 3.500 |
88.90 |
82.50 |
111.13 |
111.13 |
52.37 |
19.84 |
14.30 |
| 3.625 |
92.08 |
85.70 |
114.30 |
114.30 |
52.37 |
19.84 |
14.30 |
| 3.750 |
95.25 |
88.90 |
117.48 |
117.48 |
52.37 |
19.84 |
14.30 |
| 3.875 |
98.43 |
92.00 |
120.65 |
120.65 |
52.37 |
19.84 |
14.30 |
| 4.000 |
101.60 |
95.20 |
123.83 |
123.83 |
52.37 |
19.84 |
14.30 |
