HK960
-
Type:
-

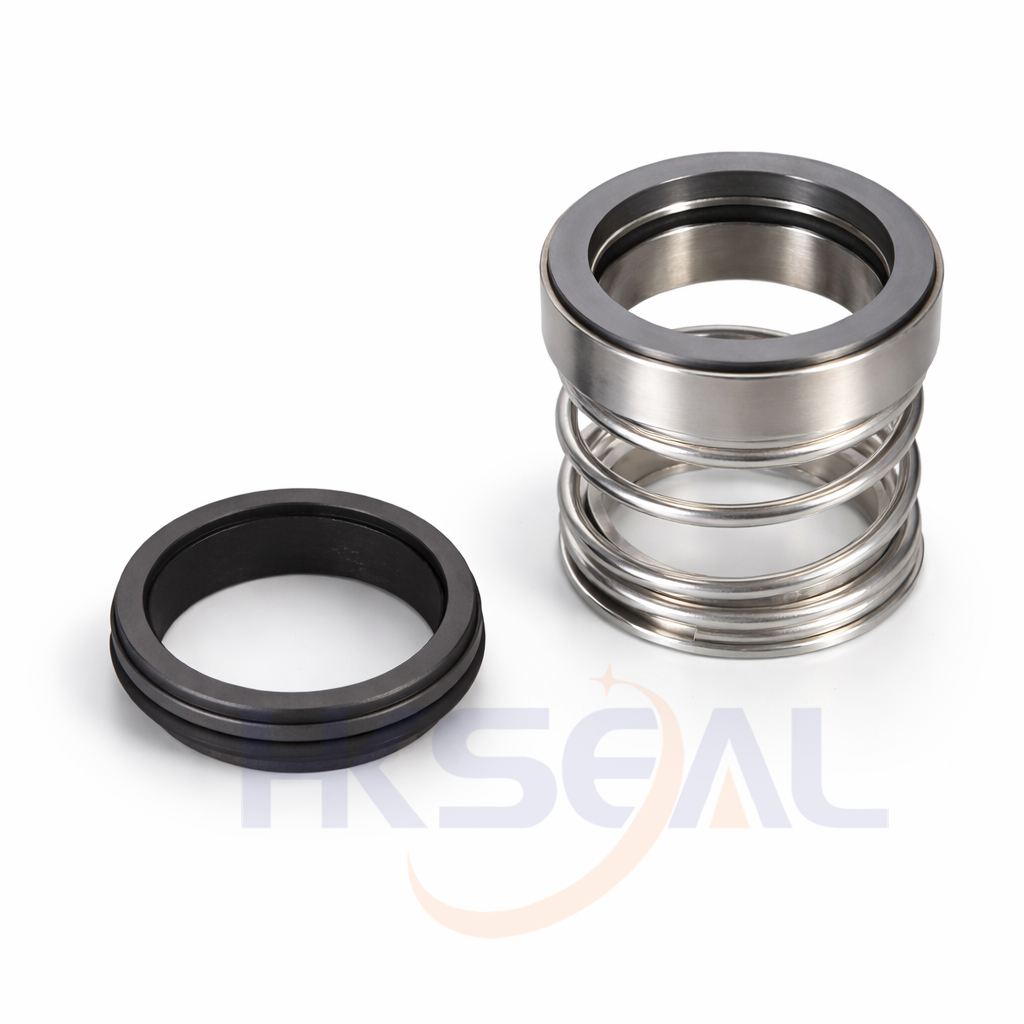

O-Ring Mechanical Seal
- Replacement:
-
Vulcan96
Temperature:
-50℃ to +200℃
Pressure:
≤1Mpa
Speed:
≤20m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
| d |
D1 |
D2 |
D3 |
D4 |
L |
L1 |
L3 |
L4 |
| (mm) |
| 20 |
33.32 |
29.06 |
34.50 |
37.00 |
38.00 |
29.90 |
15.00 |
4.00 |
| 25 |
39.85 |
33.84 |
41.00 |
43.00 |
41.50 |
31.50 |
16.00 |
4.00 |
| 28 |
43.05 |
37.01 |
42.00 |
46.00 |
43.00 |
33.00 |
16.00 |
4.00 |
| 30 |
44.63 |
38.61 |
45.50 |
47.50 |
43.00 |
33.00 |
16.00 |
4.00 |
| 32 |
46.32 |
40.28 |
47.00 |
49.00 |
46.00 |
36.00 |
16.00 |
4.00 |
| 35 |
49.48 |
43.46 |
50.00 |
52.50 |
49.00 |
39.00 |
16.00 |
4.00 |
| 38 |
52.56 |
46.63 |
53.00 |
55.50 |
49.00 |
39.00 |
16.00 |
4.00 |
| 40 |
54.25 |
48.13 |
55.00 |
57.00 |
49.00 |
39.00 |
16.00 |
4.00 |
| 42 |
55.83 |
49.81 |
55.50 |
58.50 |
49.00 |
39.00 |
16.00 |
4.00 |
| 45 |
59.02 |
52.98 |
60.00 |
62.00 |
49.00 |
39.00 |
16.00 |
4.00 |
| 50 |
65.37 |
59.33 |
66.00 |
68.50 |
57.00 |
47.00 |
18.00 |
5.00 |
| 55 |
70.03 |
64.01 |
71.00 |
73.00 |
58.50 |
48.50 |
18.00 |
5.00 |
| 60 |
76.38 |
70.36 |
77.00 |
81.00 |
62.00 |
52.00 |
18.00 |
5.00 |
| 65 |
81.23 |
75.21 |
82.00 |
85.50 |
65.00 |
55.00 |
18.00 |
5.00 |
| 70 |
85.90 |
79.88 |
87.00 |
90.50 |
65.00 |
55.00 |
18.00 |
5.00 |
| 75 |
90.77 |
84.73 |
91.50 |
97.00 |
70.00 |
60.00 |
18.00 |
5.00 |
| 80 |
100.29 |
94.26 |
99.50 |
103.00 |
76.00 |
66.00 |
18.00 |
5.00 |
| 85 |
104.77 |
98.93 |
105.50 |
108.00 |
76.00 |
66.00 |
18.00 |
5.00 |
| 90 |
109.82 |
103.78 |
110.50 |
114.50 |
81.00 |
71.00 |
18.00 |
5.00 |
| 95 |
114.30 |
108.46 |
115.50 |
119.00 |
81.00 |
71.00 |
18.00 |
5.00 |
| 100 |
119.33 |
113.31 |
120.00 |
124.00 |
81.00 |
71.00 |
18.00 |
5.00 |
| 105 |
127.00 |
121.16 |
128.00 |
132.00 |
85.50 |
75.50 |
18.00 |
5.00 |
| 110 |
131.77 |
126.01 |
133.00 |
137.00 |
85.50 |
75.50 |
18.00 |
5.00 |
| 115 |
136.52 |
130.68 |
137.50 |
142.00 |
85.50 |
75.50 |
18.00 |
5.00 |
| 120 |
142.87 |
137.03 |
144.00 |
147.00 |
92.00 |
82.00 |
18.00 |
5.00 |
