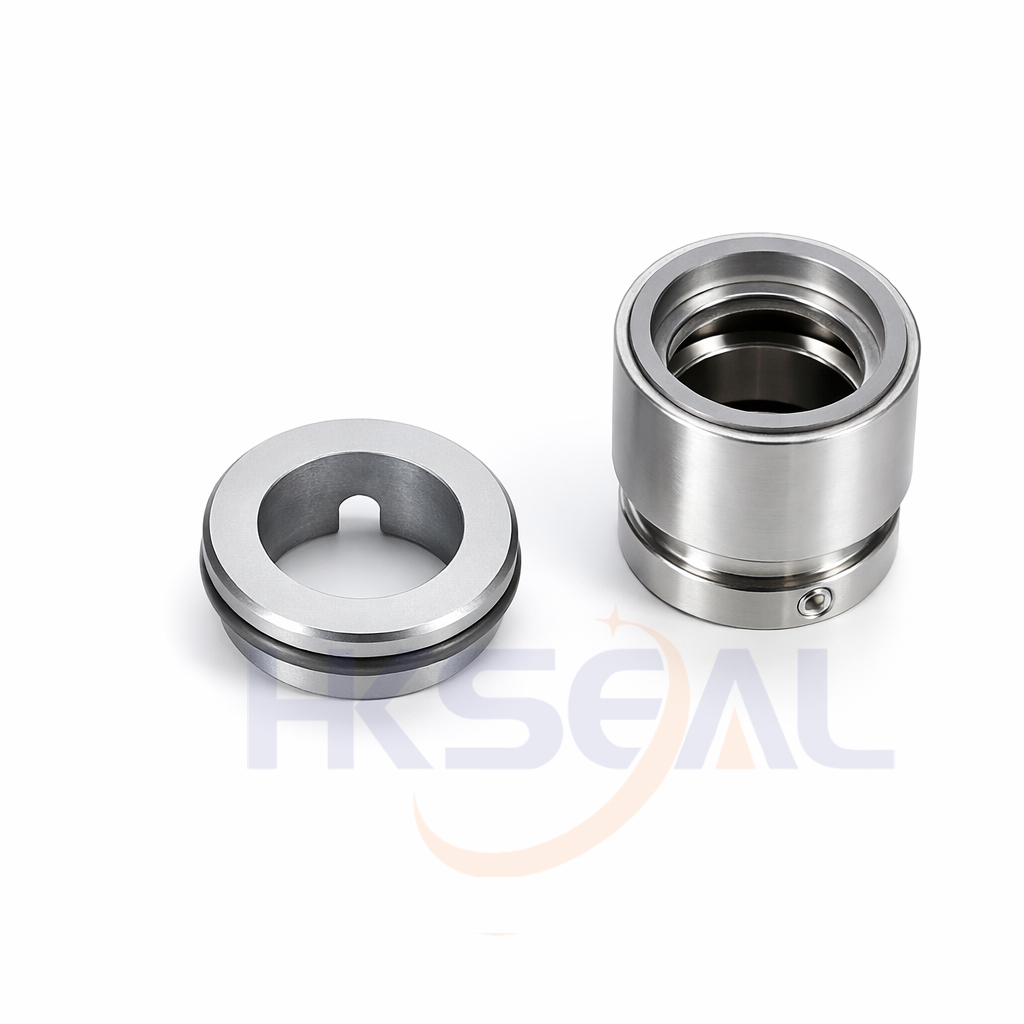

HKGNZ
-
Type:
-
Multi Spring Mechanical Seal,Suit for, Grundfos,Hilge Pumps
- Replacement:
-
AES M010，Burgmann HJ92N，Roten EHS
Temperature:
-20℃ to +180℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Siz |
D1 |
D2 |
D3 |
L1 |
L2 |
| (mm) |
| 14 |
25 |
21 |
24 |
32.5 |
5.5 |
| 16 |
27 |
23 |
26 |
34.5 |
5.5 |
| 18 |
33 |
27 |
32 |
30.5 |
7.0 |
| 20 |
35 |
29 |
34 |
30.5 |
7.0 |
| 22 |
37 |
31 |
36 |
30.5 |
7.0 |
| 24 |
39 |
33 |
38 |
33.0 |
7.0 |
| 25 |
40 |
34 |
39 |
33.0 |
7.0 |
| 28 |
43 |
37 |
42 |
35.5 |
7.0 |
| 30 |
45 |
39 |
44 |
35.5 |
7.0 |
| 32 |
48 |
42 |
47 |
35.5 |
7.0 |
| 33 |
48 |
42 |
47 |
35.5 |
7.0 |
| 35 |
50 |
44 |
49 |
35.5 |
7.0 |
| 38 |
56 |
49 |
54 |
37.0 |
8.0 |
| 40 |
58 |
51 |
56 |
37.0 |
8.0 |
| 43 |
61 |
54 |
59 |
37.0 |
8.0 |
| 45 |
63 |
56 |
61 |
37.0 |
8.0 |
| 48 |
66 |
59 |
64 |
37.0 |
8.0 |
| 50 |
70 |
62 |
66 |
38.0 |
9.5 |
| 53 |
73 |
65 |
69 |
38.0 |
9.5 |
| 55 |
75 |
67 |
71 |
38.0 |
9.5 |
| 58 |
78 |
70 |
78 |
42.0 |
10.5 |
| 60 |
80 |
72 |
80 |
42.0 |
10.5 |
| 63 |
83 |
75 |
83 |
42.0 |
10.5 |
| 65 |
85 |
77 |
85 |
42.0 |
10.5 |
| 68 |
90 |
81 |
88 |
41.5 |
11.0 |
| 70 |
92 |
83 |
90 |
48.5 |
11.5 |
| 75 |
97 |
88 |
99 |
48.5 |
11.5 |
| 80 |
105 |
95 |
104 |
48.5 |
11.5 |
| 85 |
110 |
100 |
109 |
48.5 |
11.5 |
| 90 |
115 |
105 |
114 |
52.0 |
13.0 |
| 95 |
120 |
110 |
119 |
52.0 |
13.0 |
| 100 |
125 |
115 |
124 |
52.0 |
13.0 |
