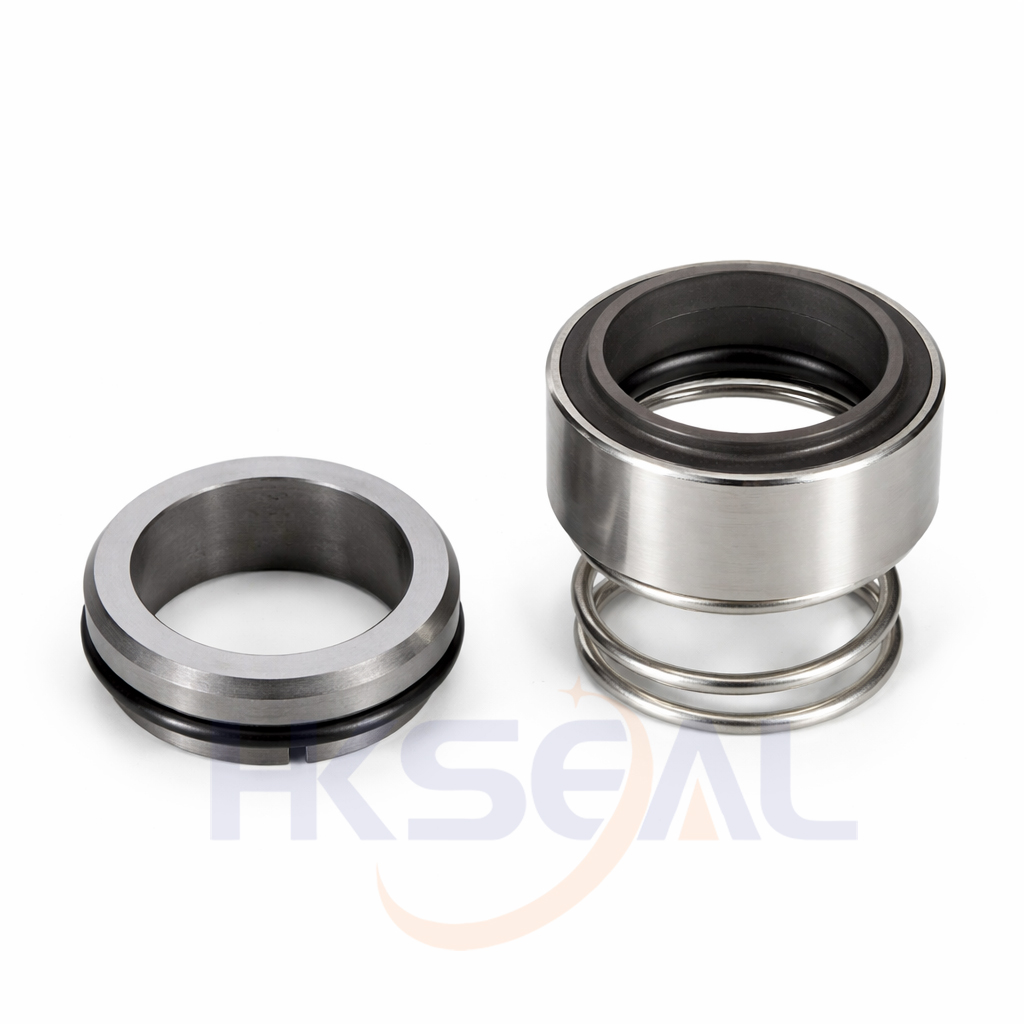

HKH12
- Type:
-
O-Ring Mechanical Seal
- Replacement:
-
Burgmann H12N，AES T01DB
Temperature:
-20℃ to +180℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
| Size |
d0 |
d |
D1 |
D3 |
L1 |
L2 |
| (mm) |
| 10 |
14 |
10 |
21 |
|
25.5 |
10.0 |
| 12 |
16 |
12 |
23 |
26 |
26.5 |
10.0 |
| 14 |
18 |
14 |
25 |
31 |
29.5 |
10.0 |
| 16 |
20 |
16 |
27 |
34 |
31.0 |
10.0 |
| 18 |
22 |
18 |
33 |
36 |
32.5 |
11.5 |
| 20 |
24 |
20 |
35 |
38 |
32.5 |
11.5 |
| 22 |
26 |
22 |
37 |
40 |
32.5 |
11.5 |
| 24 |
28 |
24 |
39 |
42 |
32.5 |
11.5 |
| 25 |
30 |
25 |
40 |
44 |
33.5 |
11.5 |
| 28 |
33 |
28 |
43 |
47 |
35.5 |
11.5 |
| 30 |
35 |
30 |
45 |
49 |
35.5 |
11.5 |
| 32 |
38 |
32 |
48 |
54 |
39.5 |
11.5 |
| 33 |
38 |
33 |
48 |
54 |
39.5 |
11.5 |
| 35 |
40 |
35 |
50 |
56 |
43.5 |
11.5 |
| 38 |
43 |
38 |
56 |
59 |
46.0 |
14.0 |
| 40 |
45 |
40 |
58 |
61 |
48.0 |
14.0 |
| 43 |
48 |
43 |
61 |
64 |
51.0 |
14.0 |
| 45 |
50 |
45 |
63 |
66 |
55.0 |
14.0 |
| 48 |
53 |
48 |
66 |
69 |
55.0 |
14.0 |
| 50 |
55 |
50 |
70 |
71 |
58.0 |
15.0 |
| 53 |
58 |
53 |
73 |
78 |
60.0 |
15.0 |
| 55 |
60 |
55 |
75 |
79 |
60.0 |
15.0 |
| 58 |
63 |
58 |
78 |
83 |
60.0 |
15.0 |
| 60 |
65 |
60 |
80 |
85 |
60.0 |
15.0 |
| 63 |
68 |
63 |
83 |
88 |
60.0 |
15.0 |
| 65 |
70 |
65 |
85 |
90 |
61.0 |
15.0 |
| 70 |
75 |
70 |
92 |
98 |
63.0 |
18.0 |
| 75 |
80 |
75 |
97 |
103 |
68.0 |
18.0 |
| 80 |
85 |
80 |
105 |
109 |
68.0 |
18.2 |
