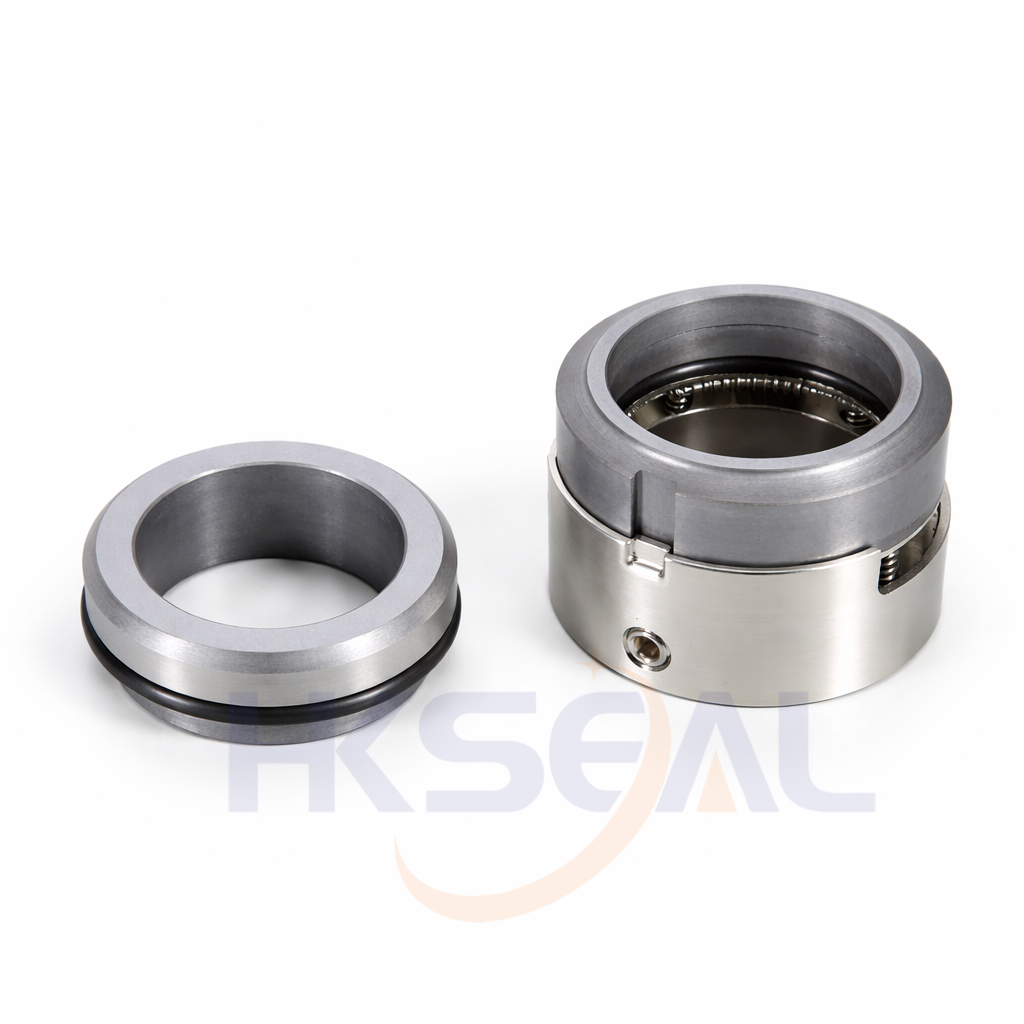

HKH75

Type:
Wave/Multi Spring Mechanical Seal
Replacement:
Bergmann H75 Temperature: -20℃ to +180℃ Pressure: ≤2.5Mpa Speed: ≤15m/s
Material:
Q2,B,U2,P,E,V,F,G
  • Detail
  •

d d0 D1 D2 D3 d1 L1 L2 L3 L5 L6 M
(mm)
14 18 25 21 33 3 32.5 10.0  17.5  6.0  8.0  M5
16 20 27 23 35 3 32.5 10.0  17.5  6.0  8.0  M5
18 22 33 27 37 3 33.5 11.5  19.5  7.0  8.5  M5
20 24 35 29 39 3 33.5 11.5  19.5  5.5  8.5  M5
22 26 37 31 41 3 33.5 11.5  19.5  8.0  8.5  M5
24 28 39 33 43 3 36 11.5  19.5  5.5  8.5  M6
25 30 40 34 45 3 36 11.5  19.5  5.5  8.5  M6
28 33 43 37 48 3 38.5 11.5  19.5  8.0  8.5  M6
30 35 45 39 50 3 38.5 11.5  19.5  8.0  8.5  M6
32 38 48 42 55 3 38.5 11.5  19.5  8.0  8.5  M5
33 38 48 42 55 3 38.5 11.5  19.5  8.0  8.5  M6
35 40 50 44 57 3 38.5 11.5  19.5  8.0  8.5  M6
38 43 56 49 60 4 38.5 14.0  22.0  8.0  9.0  M6
40 45 58 51 62 4 38.5 14.0  22.0  8.0  9.0  M6
43 48 61 54 65 4 38.5 14.0  22.0  8.0  9.0  M6
45 50 63 56 67 4 38.5 14.0  22.0  8.0  9.0  M6
48 53 66 59 70 4 38.5 14.0  22.0  8.0  9.0  M6
50 55 70 62 72 4 42.5 15.0  23.0  8.0  10.0  M6
53 58 73 65 79 4 42.5 15.0  23.0  9.0  10.0  M8
55 60 75 67 81 4 42.5 15.0  23.0  9.0  10.0  M8
58 63 78 70 84 4 47.5 15.0  23.0  9.0  10.0  M8
60 65 80 72 86 4 47.5 15.0  23.0  9.0  10.0  M8
63 68 83 75 89 4 47.5 15.0  23.0  9.0  10.0  M8
65 70 85 77 91 4 47.5 15.0  23.0  9.0  10.0  M8
70 75 92 83 99 4 52 18.0  26.0  10.0  10.0  M8
75 80 97 88 104 4 52 18.0  26.0  10.0  10.0  M8
80 85 105 95 109 4 51.8 18.2  26.2  10.0  9.8  M8
85 90 110 100 114 4 56.8 18.2  26.2  10.0  9.8  M8
90 95 115 105 119 4 56.8 18.2  26.2  10.0  9.8  M8
95 100 120 110 124 4 57.8 17.2  25.2  10.0  10.8  M8
100 105 125 115 129 4 57.8 17.2  25.2  10.0  10.8  M8
