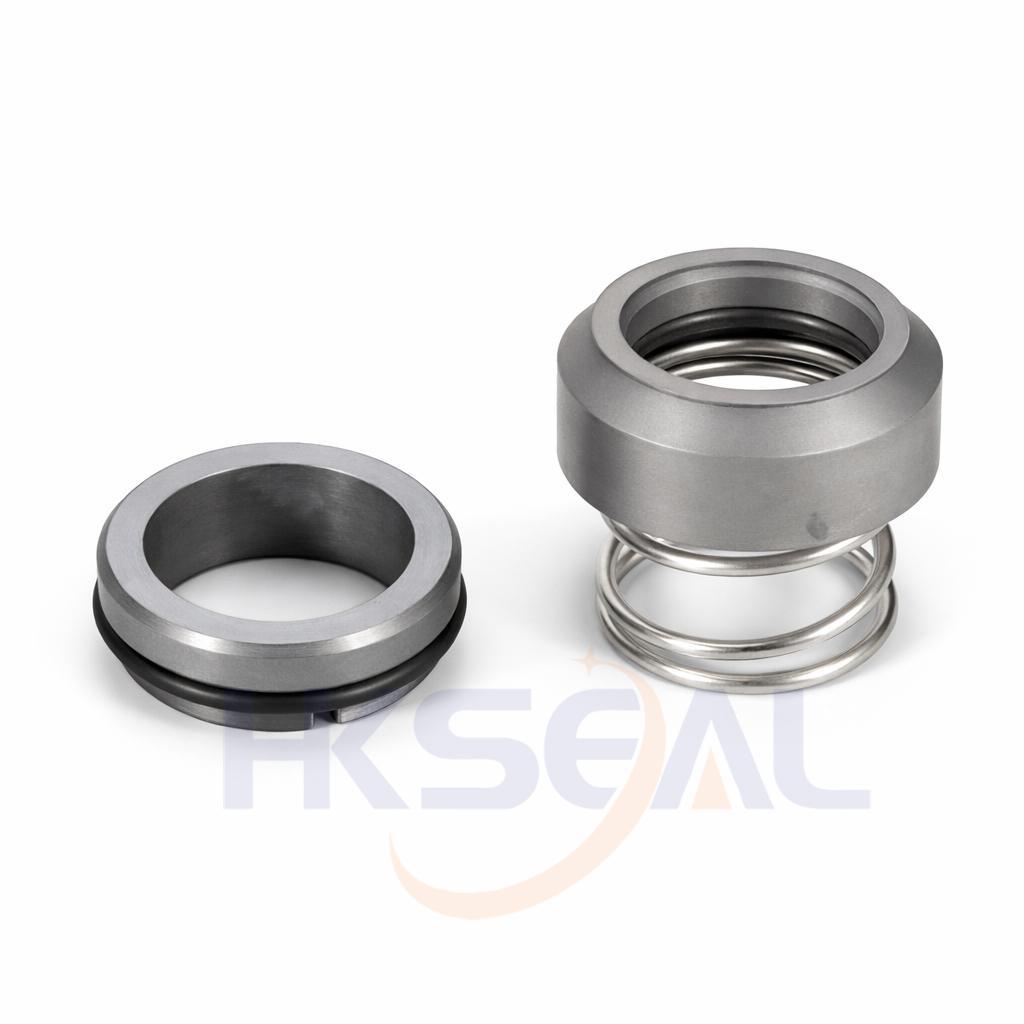

HKM2
-
Type:
-
O-Ring Mechanical Seal
- Replacement:
-
Burgmann M2N，AES T07D，Roten Uniten 22
Temperature:
-20℃ to +180℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
| Size |
D1 |
D3 |
L1 |
L3 |
| (mm) |
| 10 |
21.0 |
20.0 |
17.5 |
10.0 |
| 12 |
23.0 |
22.0 |
17.5 |
10.0 |
| 14 |
25.0 |
25.0 |
17.5 |
10.0 |
| 16 |
27.0 |
27.0 |
19.5 |
10.0 |
| 18 |
33.0 |
30.0 |
20.5 |
11.5 |
| 20 |
35.0 |
32.0 |
22.0 |
11.5 |
| 22 |
37.0 |
35.0 |
23.5 |
11.5 |
| 24 |
39.0 |
38.0 |
25.0 |
11.5 |
| 25 |
40.0 |
40.0 |
26.5 |
11.5 |
| 28 |
43.0 |
43.0 |
26.5 |
11.5 |
| 30 |
45.0 |
47.0 |
25.0 |
11.5 |
| 32 |
48.0 |
48.0 |
28.5 |
11.5 |
| 35 |
50.0 |
53.0 |
28.5 |
11.5 |
| 38 |
58.0 |
56.0 |
32.0 |
14.0 |
