HKM32-M37
-
Type:
-

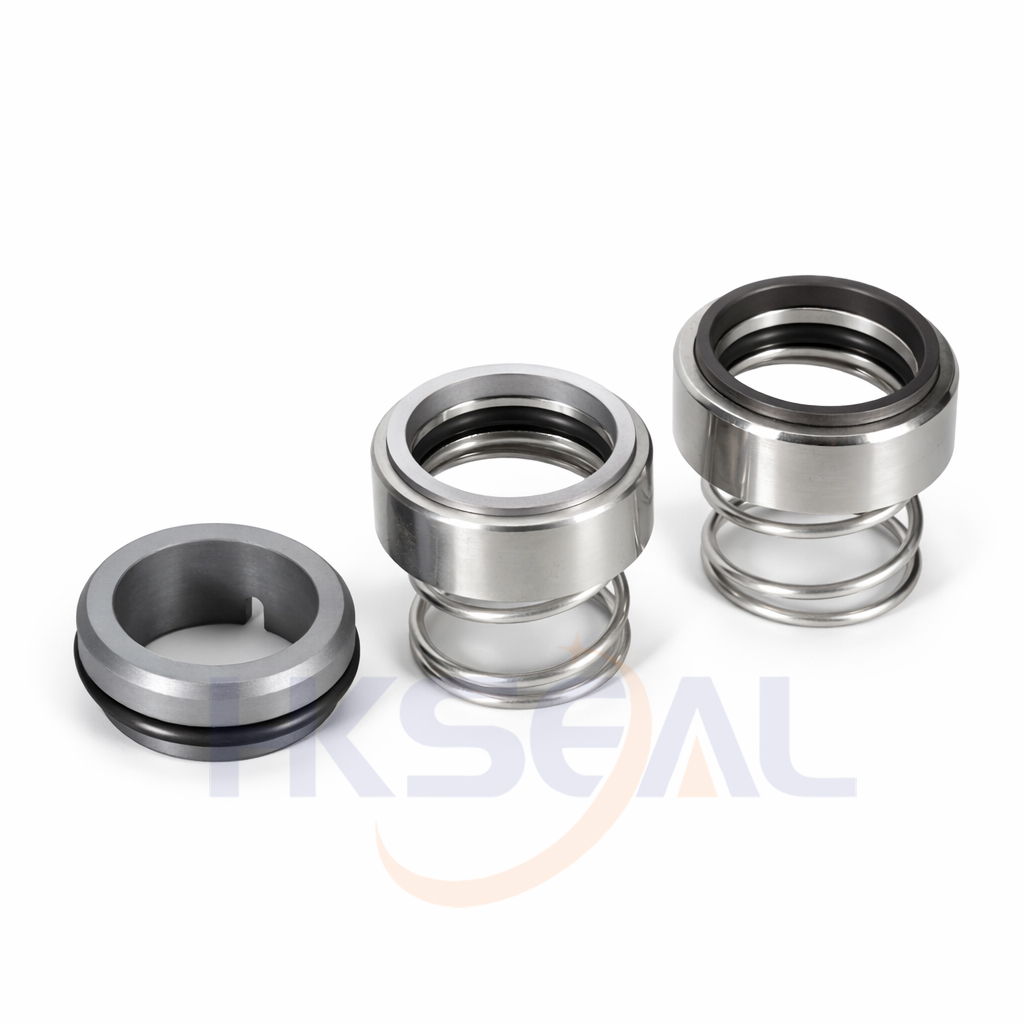

O-Ring Mechanical Seal
- Replacement:
-
Burgmann M37/M37G
Temperature:
-20℃ to +180℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
.jpg)
| Size |
D3 |
D2 |
D1 |
L1 |
L11 |
L2 |
L3 |
| (mm) |
| 10 |
20.0 |
17.0 |
21.0 |
16.9 |
16.5 |
10.0 |
17.5 |
| 12 |
22.0 |
19.0 |
23.0 |
17.4 |
16.5 |
10.0 |
17.5 |
| 14 |
24.0 |
21.0 |
25.0 |
17.4 |
16.5 |
10.0 |
17.5 |
| 16 |
26.0 |
23.0 |
27.0 |
19.5 |
16.0 |
10.0 |
17.5 |
| 18 |
31.0 |
27.0 |
33.0 |
20.5 |
18.0 |
11.5 |
19.5 |
| 20 |
34.0 |
29.0 |
35.0 |
22.0 |
19.0 |
11.5 |
19.5 |
| 22 |
36.0 |
31.0 |
37.0 |
23.5 |
20.5 |
11.5 |
19.5 |
| 24 |
38.0 |
33.0 |
39.0 |
25.0 |
22.0 |
11.5 |
19.5 |
| 25 |
39.0 |
34.0 |
40.0 |
26.5 |
23.5 |
11.5 |
19.5 |
| 28 |
42.0 |
37.0 |
43.0 |
26.5 |
24.5 |
11.5 |
19.5 |
| 30 |
44.0 |
39.0 |
45.0 |
25.0 |
24.5 |
11.5 |
19.5 |
| 32 |
46.0 |
42.0 |
48.0 |
28.5 |
28.0 |
11.5 |
19.5 |
| 33 |
47.0 |
42.0 |
48.0 |
28.5 |
28.0 |
11.5 |
19.5 |
| 35 |
49.0 |
44.0 |
50.0 |
28.5 |
28.0 |
11.5 |
19.5 |
| 38 |
54.0 |
49.0 |
56.0 |
32.2 |
31.0 |
14.0 |
22.0 |
| 40 |
56.0 |
51.0 |
58.0 |
34.7 |
34.0 |
14.0 |
22.0 |
| 43 |
59.0 |
54.0 |
61.0 |
34.7 |
34.0 |
14.0 |
22.0 |
| 45 |
61.0 |
56.0 |
63.0 |
39.2 |
36.5 |
14.0 |
22.0 |
| 48 |
64.0 |
59.0 |
66.0 |
44.7 |
42.0 |
14.0 |
22.0 |
| 50 |
66.0 |
62.0 |
70.0 |
45.7 |
43.0 |
15.0 |
23.0 |
| 53 |
69.0 |
65.0 |
73.0 |
45.7 |
43.0 |
15.0 |
23.0 |
| 55 |
71.0 |
67.0 |
75.0 |
49.0 |
47.0 |
15.0 |
23.0 |
| 58 |
78.0 |
70.0 |
78.0 |
52.0 |
50.0 |
15.0 |
23.0 |
| 60 |
79.0 |
72.0 |
80.0 |
53.0 |
51.0 |
15.0 |
23.0 |
| 63 |
83.0 |
75.0 |
83.0 |
53.0 |
51.0 |
15.0 |
23.0 |
| 65 |
85.0 |
77.0 |
85.0 |
54.3 |
52.0 |
15.0 |
23.0 |
| 68 |
88.0 |
81.0 |
90.0 |
55.3 |
52.7 |
18.0 |
26.0 |
| 70 |
90.0 |
83.0 |
92.0 |
56.3 |
54.0 |
18.0 |
26.0 |
| 75 |
98.0 |
88.0 |
97.0 |
56.3 |
54.0 |
18.0 |
26.0 |
| 80 |
103.0 |
95.0 |
105.0 |
59.3 |
58.0 |
18.2 |
26.2 |
