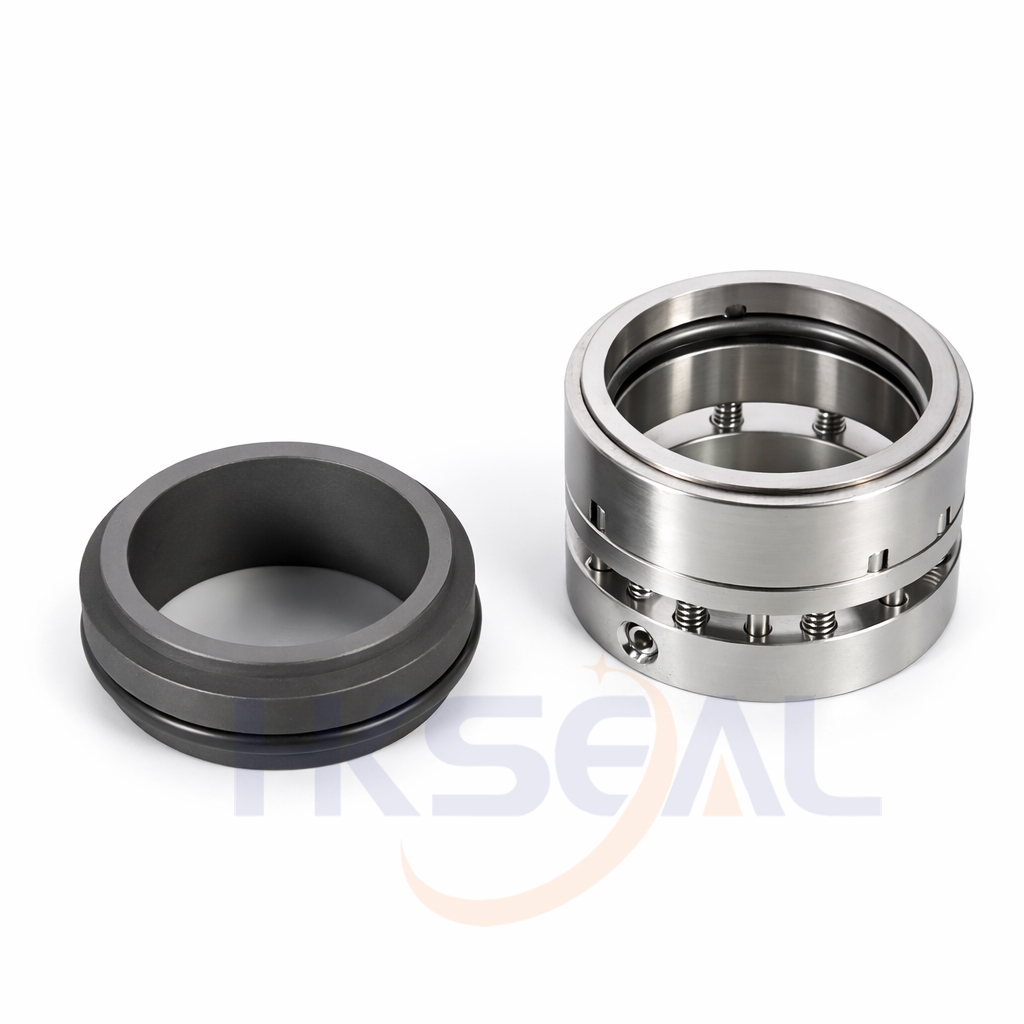

HKRO-B

Type:
Multi Spring Mechanical Seal
Replacement:
Flowserve RO-B Temperature: -20℃ to +150℃ Pressure: ≤1.0Mpa Speed: ≤15m/s
Material:
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
  • Detail
  •

  Size D1 D2 D3 d1 L1 L2 L3
(mm)
20 35 29 34 3 35 13 21
22 37 31 36 3 35 13 21
24 39 33 38 3 35 13 21
25 40 34 39 3 35 13 21
28 43 37 42 3 35 13 21
30 45 39 44 3 35 13 21
32 48 42 46 3 35 13 21
33 48 42 47 3 35 13 21
35 50 44 49 3 35 13 21
38 56 50 54 4 38 13 21
40 58 52 56 4 38 13 21
43 61 55 59 4 38 13 21
45 63 57 61 4 38 13 21
48 66 60 64 4 38 13 21
50 68 62 66 4 39 13 21
53 71 65 69 4 40 13 21
55 73 67 71 4 40 13 21
58 79 70 76 4 41 16 24
60 81 72 78 4 41 16 24
63 84 75 81 4 41 16 24
65 86 77 83 4 41 16 24
68 90 81 86 4 41 16 24
70 92 83 90 4 42 16 24
75 97 88 95 4 42 16 24
80 105 96 100 4 42 16 24
85 110 101 105 4 43 16 24
90 115 106 110 4 45 16 24
95 120 111 115 4 45 16 24
100 125 116 120 4 45 16 24
