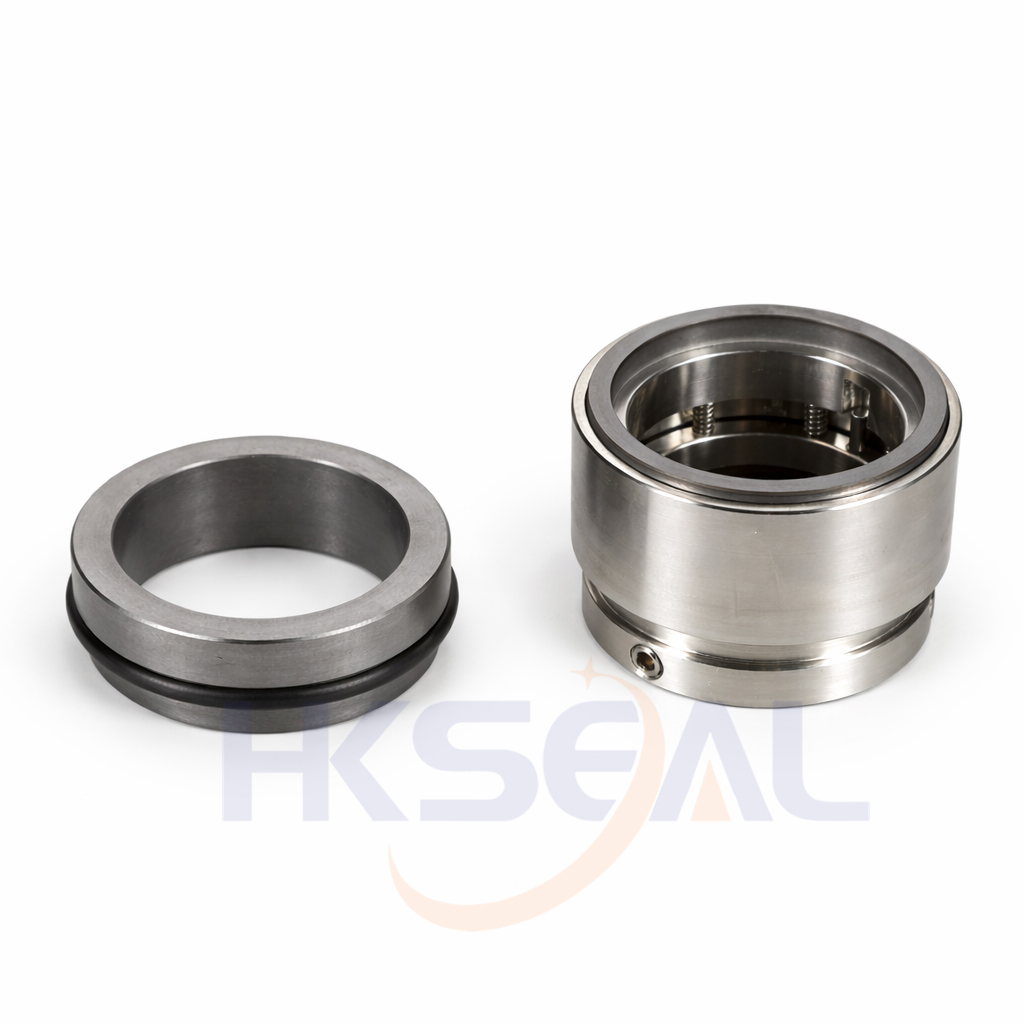

HKSAI
-
Type:
-
Multi Spring Mechanical Seal
- Replacement:
-
AES DIN SAI
Temperature:
-50℃ to +204℃
Pressure:
≤1.2Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
D1 |
D3 |
D4 |
L1 |
L2 |
| (mm) |
| 18 |
33 |
32.0 |
34.0 |
27.9 |
9.6 |
| 20 |
35 |
34.0 |
36.0 |
27.9 |
9.6 |
| 22 |
37 |
36.0 |
38.0 |
27.9 |
9.6 |
| 24 |
39 |
38.0 |
40.0 |
30.0 |
10.1 |
| 25 |
40 |
39.0 |
41.0 |
30.0 |
10.1 |
| 28 |
43 |
42.0 |
44.0 |
32.4 |
10.1 |
| 30 |
45 |
44.0 |
46.0 |
32.4 |
10.1 |
| 32 |
48 |
46.0 |
48.0 |
32.4 |
10.1 |
| 33 |
48 |
47.0 |
49.0 |
32.4 |
10.1 |
| 35 |
50 |
49.0 |
51.0 |
32.4 |
10.1 |
| 38 |
56 |
54.0 |
58.0 |
33.9 |
11.1 |
| 40 |
58 |
56.0 |
60.0 |
33.9 |
11.1 |
| 43 |
61 |
59.0 |
63.0 |
33.9 |
11.1 |
| 45 |
63 |
61.0 |
65.0 |
33.9 |
11.1 |
| 48 |
66 |
64.0 |
68.0 |
33.9 |
11.1 |
| 50 |
70 |
66.0 |
70.0 |
34.4 |
11.1 |
| 53 |
73 |
69.0 |
73.0 |
34.4 |
13.1 |
| 55 |
75 |
71.0 |
75.0 |
34.4 |
13.1 |
| 58 |
78 |
78.0 |
83.0 |
38.9 |
13.1 |
| 60 |
80 |
80.0 |
85.0 |
38.9 |
13.6 |
| 63 |
83 |
83.0 |
88.0 |
38.9 |
13.3 |
| 65 |
85 |
85.0 |
90.0 |
38.9 |
13.3 |
| 68 |
90 |
88.0 |
93.0 |
37.4 |
15.1 |
| 70 |
92 |
90.0 |
95.0 |
44.9 |
15.1 |
| 75 |
97 |
99.0 |
104.0 |
44.9 |
15.1 |
| 80 |
105 |
104.0 |
119.0 |
44.2 |
15.8 |
| 85 |
110 |
109.0 |
114.0 |
44.2 |
15.8 |
| 90 |
115 |
114.0 |
119.0 |
49.2 |
15.8 |
| 95 |
120 |
119.0 |
124.0 |
49.2 |
15.8 |
| 100 |
125 |
124.0 |
129.0 |
49.2 |
15.8 |
