HKUM3D
-
Type:
-

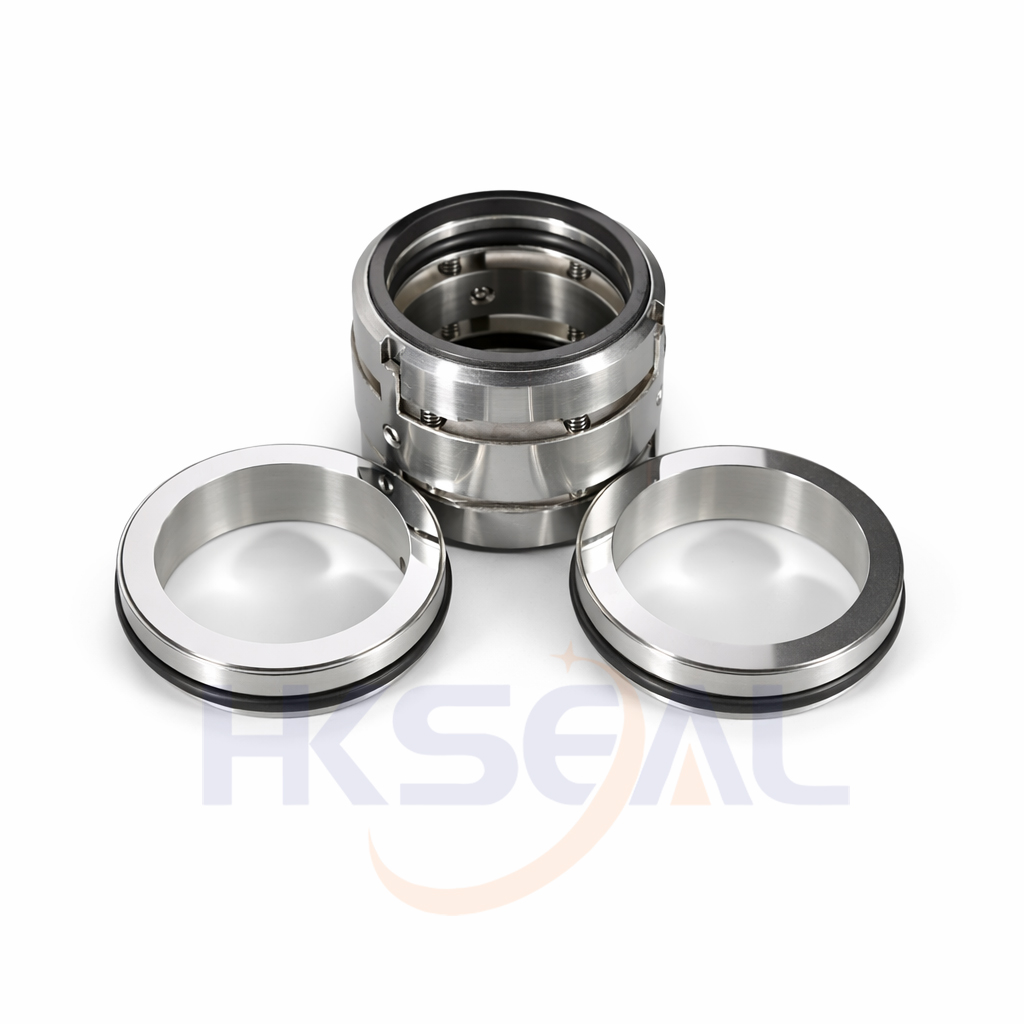

Double Mechanical Seal
- Replacement:
-
Fluiten seal UM3A double
Temperature:
-20℃ to +180℃
Pressure:
≤1.2Mpa
Speed:
≤15m/s
- Material:
-
Q2,B,U2,P,E,V,F,G
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
| (mm) |
| 18 |
33.0 |
27.0 |
33.0 |
38.0 |
11.5 |
19.5 |
| 20 |
35.0 |
29.0 |
35.0 |
38.0 |
11.5 |
19.5 |
| 22 |
37.0 |
31.0 |
37.0 |
38.0 |
11.5 |
19.5 |
| 24 |
39.0 |
33.0 |
39.0 |
38.0 |
11.5 |
19.5 |
| 25 |
40.0 |
34.0 |
40.0 |
38.0 |
11.5 |
19.5 |
| 28 |
43.0 |
37.0 |
43.0 |
39.0 |
11.5 |
19.5 |
| 30 |
45.0 |
39.0 |
45.0 |
39.0 |
11.5 |
19.5 |
| 32 |
48.0 |
42.0 |
47.0 |
39.0 |
11.5 |
19.5 |
| 33 |
48.0 |
42.0 |
48.0 |
39.0 |
11.5 |
19.5 |
| 35 |
50.0 |
44.0 |
50.0 |
39.0 |
11.5 |
19.5 |
| 38 |
56.0 |
49.0 |
55.0 |
41.0 |
14.0 |
22.0 |
| 40 |
58.0 |
51.0 |
57.0 |
42.0 |
14.0 |
22.0 |
| 43 |
61.0 |
54.0 |
60.0 |
42.0 |
14.0 |
22.0 |
| 45 |
63.0 |
56.0 |
62.0 |
42.0 |
14.0 |
22.0 |
| 48 |
66.0 |
59.0 |
65.0 |
42.0 |
14.0 |
22.0 |
| 50 |
70.0 |
62.0 |
67.0 |
43.0 |
15.0 |
23.0 |
| 53 |
73.0 |
65.0 |
70.0 |
43.0 |
15.0 |
23.0 |
| 55 |
75.0 |
67.0 |
72.0 |
43.0 |
15.0 |
23.0 |
| 58 |
78.0 |
70.0 |
79.0 |
56.0 |
15.0 |
23.0 |
| 60 |
80.0 |
72.0 |
81.0 |
56.0 |
15.0 |
23.0 |
| 63 |
83.0 |
75.0 |
84.0 |
55.0 |
15.0 |
23.0 |
| 65 |
85.0 |
77.0 |
86.0 |
55.0 |
15.0 |
23.0 |
| 68 |
90.0 |
81.0 |
89.0 |
55.0 |
18.0 |
26.0 |
| 70 |
92.0 |
83.0 |
91.0 |
56.0 |
18.0 |
26.0 |
| 75 |
97.0 |
88.0 |
99.0 |
56.0 |
18.0 |
26.0 |
| 80 |
105.0 |
95.0 |
104.0 |
56.0 |
18.2 |
26.2 |
| 85 |
110.0 |
100.0 |
109.0 |
56.0 |
18.2 |
26.2 |
| 90 |
115.0 |
105.0 |
114.0 |
56.0 |
18.2 |
26.2 |
| 95 |
120.0 |
110.0 |
119.0 |
56.0 |
17.2 |
25.2 |
| 100 |
125.0 |
115.0 |
124.0 |
56.0 |
17.2 |
25.2 |
