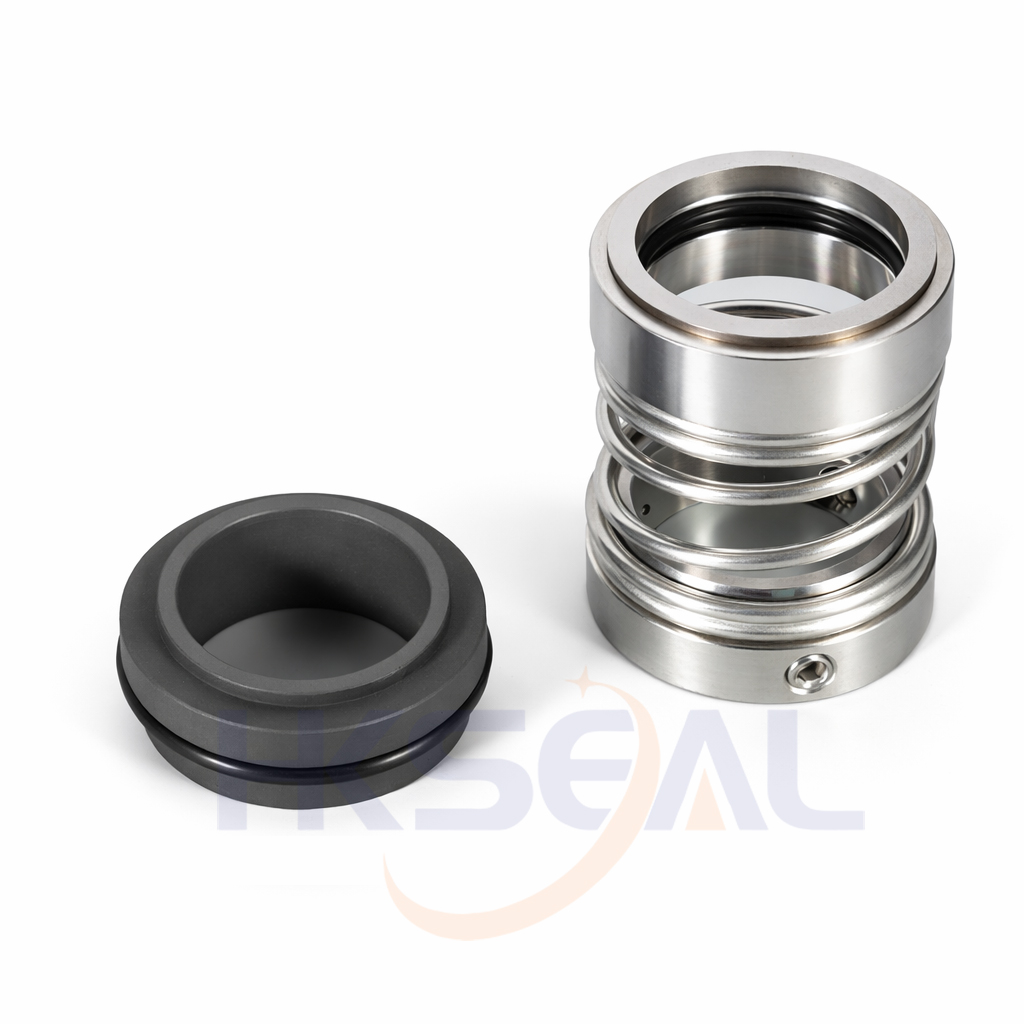

HKUS2
-
Type:
-
O-Ring Mechanical Seal
- Replacement:
-
Pillar US2
Temperature:
-20℃ to +180℃
Pressure:
≤1Mpa
Speed:
≤15m/s
- Material:
-
Q2.U2,B,V1,P,E,V,F,G
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
|
| (mm) |
|
| 20 |
33.3 |
29.1 |
34.5 |
37.3 |
7.2 |
11 |
|
| 25 |
39.7 |
33.8 |
41.0 |
40.0 |
9.2 |
12 |
|
` |
| 30 |
44.5 |
38.6 |
45.5 |
41.6 |
9.2 |
12 |
|
| 35 |
49.2 |
43.5 |
50.0 |
48.0 |
9.2 |
12 |
|
| 38 |
52.0 |
46.3 |
53.0 |
62.3 |
9.2 |
12 |
|
| 40 |
54.0 |
48.1 |
55.0 |
48.0 |
9.2 |
12 |
|
| 45 |
58.7 |
53.0 |
60.0 |
48.0 |
9.2 |
12 |
|
| 50 |
65.1 |
59.3 |
66.0 |
59.1 |
9.2 |
12 |
|
| 55 |
69.9 |
64.0 |
71.0 |
60.7 |
9.2 |
16 |
|
| 60 |
76.2 |
70.4 |
77.0 |
63.8 |
9.2 |
16 |
|
| 65 |
81.0 |
75.2 |
82.0 |
67.0 |
9.2 |
16 |
|
| 70 |
85.7 |
79.9 |
88.0 |
67.0 |
9.2 |
16 |
|
| 75 |
90.5 |
84.7 |
92.0 |
71.8 |
9.2 |
16 |
|
| 80 |
98.4 |
92.6 |
99.5 |
78.1 |
9.2 |
16 |
|
| 85 |
104.8 |
98.9 |
105.5 |
78.1 |
9.2 |
16 |
|
| 90 |
109.5 |
103.8 |
110.5 |
82.9 |
9.2 |
16 |
|
| 95 |
114.3 |
108.5 |
115.5 |
82.9 |
9.2 |
16 |
|
| 100 |
119.1 |
113.3 |
121.0 |
82.9 |
9.2 |
16 |
|
| 105 |
127.0 |
121.2 |
129.0 |
89.2 |
9.2 |
16 |
|
| 110 |
131.8 |
126.0 |
134.0 |
89.2 |
9.2 |
16 |
|
| 115 |
136.5 |
130.7 |
139.0 |
89.2 |
9.2 |
16 |
|
| 120 |
142.9 |
137.0 |
144.0 |
95.5 |
9.2 |
16 |
|
