HK59B
-
Type:
-

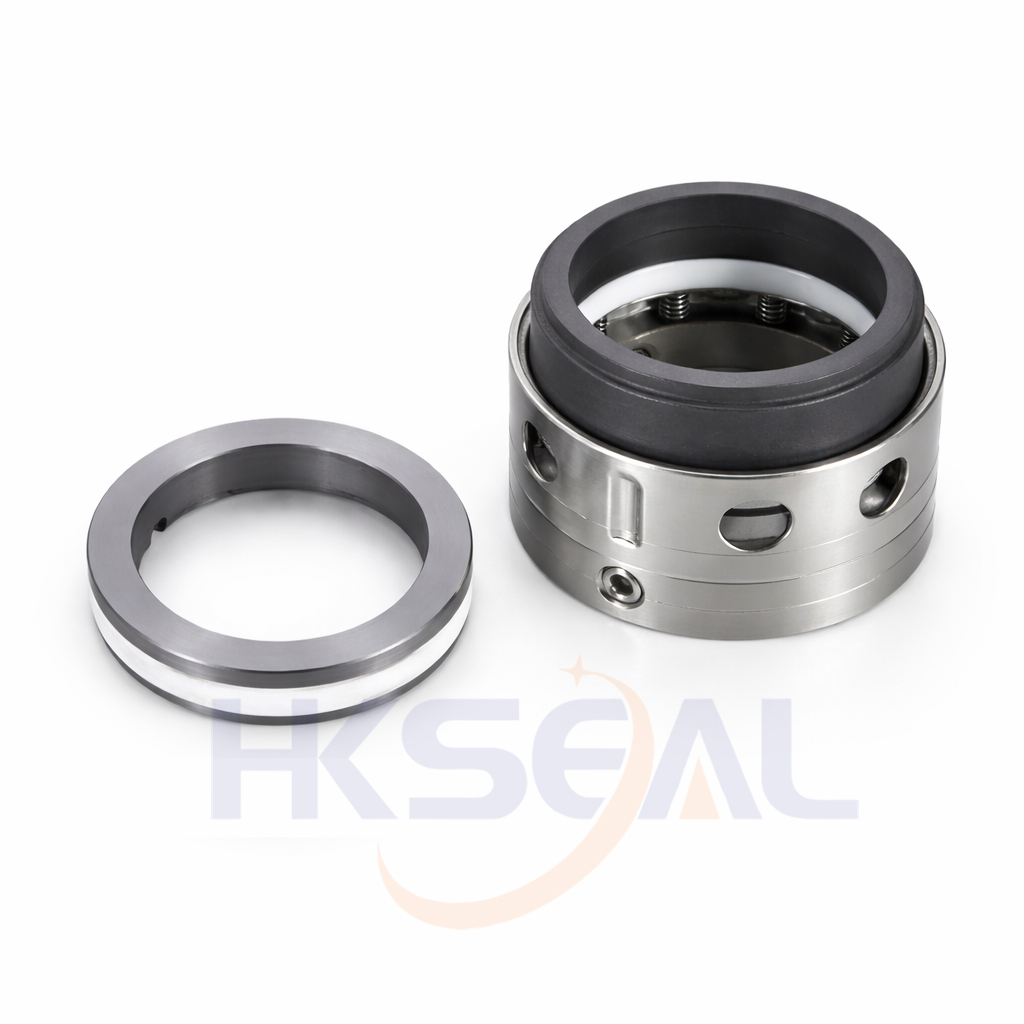

Multi Spring Mechanical Seal
- Replacement:
-
Vu1can 1659B，AES M04，Crane 59B，Bergmann BT-C56 KB
Temperature:
-40℃ to +250℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
d0 |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
L6 |
| (mm) |
| 14 |
18 |
25 |
21 |
32 |
30.5 |
12.0 |
18.5 |
6.0 |
| 16 |
20 |
27 |
23 |
34 |
30.5 |
12.0 |
18.5 |
6.0 |
| 18 |
22 |
33 |
27 |
36 |
31.5 |
13.5 |
20.5 |
6.5 |
| 20 |
24 |
35 |
29 |
38 |
31.5 |
13.5 |
20.5 |
6.5 |
| 22 |
26 |
37 |
31 |
40 |
31.5 |
13.5 |
20.5 |
6.5 |
| 24 |
28 |
39 |
33 |
42 |
34.2 |
13.3 |
20.3 |
6.7 |
| 25 |
30 |
40 |
34 |
44 |
34.5 |
13.0 |
20.0 |
7.0 |
| 28 |
33 |
43 |
37 |
47 |
37.5 |
12.5 |
19.5 |
7.5 |
| 30 |
35 |
45 |
39 |
49 |
38.0 |
12.0 |
19.0 |
8.0 |
| 32 |
38 |
48 |
42 |
54 |
38.0 |
12.0 |
19.0 |
8.0 |
| 33 |
38 |
48 |
42 |
54 |
38.0 |
12.0 |
19.0 |
8.0 |
| 35 |
40 |
50 |
44 |
56 |
38.0 |
12.0 |
19.0 |
8.0 |
| 38 |
43 |
56 |
49 |
59 |
39.5 |
13.0 |
20.0 |
10.0 |
| 40 |
45 |
58 |
51 |
61 |
39.5 |
13.0 |
20.0 |
10.0 |
| 43 |
48 |
61 |
54 |
64 |
39.5 |
13.0 |
20.0 |
10.0 |
| 45 |
50 |
63 |
56 |
66 |
39.5 |
13.0 |
20.0 |
10.0 |
| 48 |
53 |
66 |
59 |
69 |
39.5 |
13.0 |
20.0 |
10.0 |
| 50 |
55 |
70 |
62 |
71 |
44.0 |
13.5 |
20.5 |
11.5 |
| 53 |
58 |
73 |
65 |
78 |
44.0 |
13.5 |
20.5 |
11.5 |
| 55 |
60 |
75 |
67 |
80 |
44.0 |
13.5 |
20.5 |
11.5 |
| 58 |
63 |
78 |
70 |
83 |
49.0 |
13.5 |
20.5 |
11.5 |
| 60 |
65 |
80 |
72 |
85 |
49.0 |
13.5 |
20.5 |
11.5 |
| 63 |
68 |
83 |
75 |
88 |
49.0 |
13.5 |
20.5 |
11.5 |
| 65 |
70 |
85 |
77 |
90 |
49.0 |
13.5 |
20.5 |
11.5 |
| 70 |
75 |
92 |
83 |
95 |
55.5 |
14.5 |
21.5 |
13.5 |
| 75 |
80 |
97 |
88 |
104 |
55.5 |
14.5 |
21.5 |
13.5 |
| 80 |
85 |
105 |
95 |
109 |
55.5 |
15.0 |
22.0 |
13.0 |
| 85 |
90 |
110 |
100 |
114 |
60.0 |
15.0 |
22.0 |
13.0 |
| 90 |
95 |
115 |
105 |
119 |
60.0 |
15.0 |
22.0 |
13.0 |
| 95 |
100 |
120 |
110 |
124 |
60.0 |
15.0 |
22.0 |
13.0 |
| 100 |
105 |
125 |
115 |
129 |
60.0 |
15.0 |
22.0 |
13.0 |
