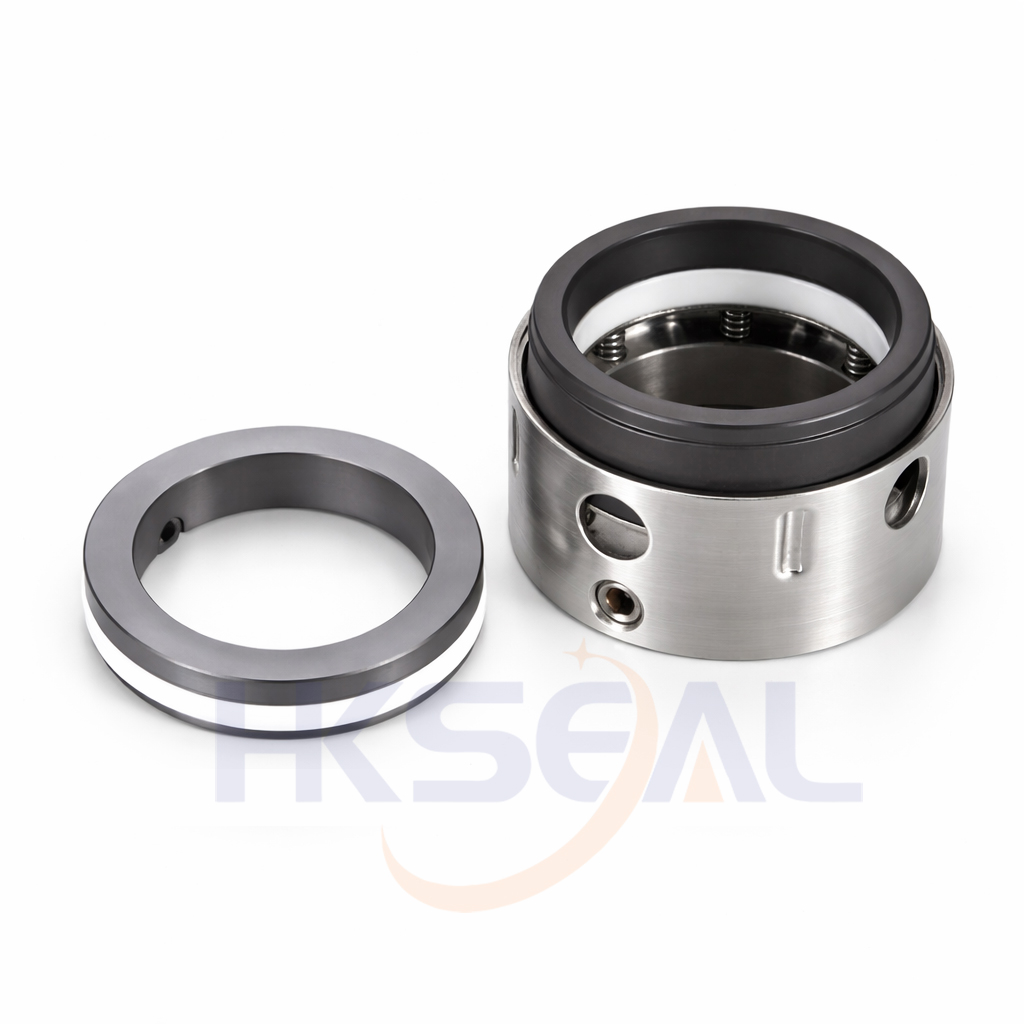

HK59U
-
Type:
-
Multi Spring Mechanical Seal
- Replacement:
-
Vu1can 1659，AES M03，Crane 59U，Bergmann BT-C56 KU
Temperature:
-40℃ to +250℃
Pressure:
≤1.2Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
| (mm) |
| 14 |
25 |
21 |
24 |
23.0 |
12.0 |
18.5 |
| 16 |
27 |
23 |
26 |
23.0 |
12.0 |
18.5 |
| 18 |
33 |
27 |
32 |
24.0 |
13.5 |
20.5 |
| 20 |
35 |
29 |
34 |
24.0 |
13.5 |
20.5 |
| 22 |
37 |
31 |
36 |
24.0 |
13.5 |
20.5 |
| 24 |
39 |
33 |
38 |
26.5 |
13.3 |
20.3 |
| 25 |
40 |
34 |
39 |
27.0 |
13.0 |
20.0 |
| 28 |
43 |
37 |
42 |
30.0 |
12.5 |
19.5 |
| 30 |
45 |
39 |
44 |
30.5 |
12.0 |
19.0 |
| 32 |
48 |
42 |
46 |
30.5 |
12.0 |
19.0 |
| 33 |
48 |
42 |
47 |
30.5 |
12.0 |
19.0 |
| 35 |
50 |
44 |
49 |
30.5 |
12.0 |
19.0 |
| 38 |
56 |
49 |
54 |
32.0 |
13.0 |
20.0 |
| 40 |
58 |
51 |
56 |
32.0 |
13.0 |
20.0 |
| 43 |
61 |
54 |
59 |
32.0 |
13.0 |
20.0 |
| 45 |
63 |
56 |
61 |
32.0 |
13.0 |
20.0 |
| 48 |
65 |
59 |
64 |
32.0 |
13.0 |
20.0 |
| 50 |
70 |
62 |
66 |
34.0 |
13.5 |
20.5 |
| 53 |
73 |
65 |
69 |
34.0 |
13.5 |
20.5 |
| 55 |
75 |
67 |
71 |
34.0 |
13.5 |
20.5 |
| 58 |
78 |
70 |
78 |
39.0 |
13.5 |
20.5 |
| 60 |
80 |
72 |
80 |
39.0 |
13.5 |
20.5 |
| 63 |
83 |
75 |
83 |
39.0 |
13.5 |
20.5 |
| 65 |
85 |
77 |
85 |
39.0 |
13.5 |
20.5 |
| 68 |
90 |
81 |
88 |
39.0 |
13.5 |
20.5 |
| 70 |
92 |
83 |
90 |
45.5 |
14.5 |
21.5 |
| 75 |
97 |
88 |
99 |
45.5 |
14.5 |
21.5 |
| 80 |
105 |
95 |
104 |
45.0 |
15.0 |
22.0 |
| 85 |
110 |
100 |
109 |
45.0 |
15.0 |
22.0 |
| 90 |
115 |
105 |
114 |
50.0 |
15.0 |
22.0 |
| 95 |
120 |
110 |
119 |
50.0 |
15.0 |
22.0 |
| 100 |
125 |
115 |
124 |
50.0 |
15.0 |
22.0 |
