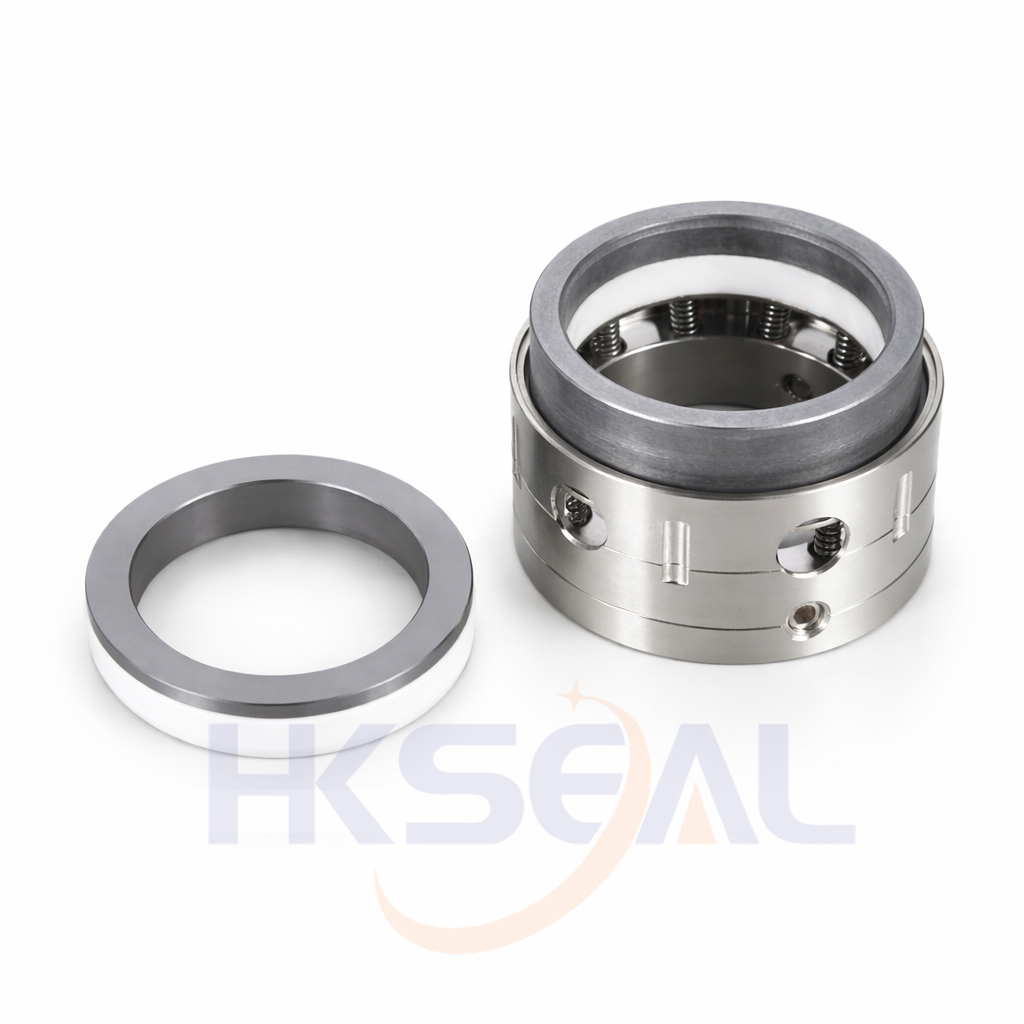

HK9T
-
Type:
-
Multi Spring Mechanical Seal
- Replacement:
-
Vu1can 1645B，AES M06，Crane 9BT
Temperature:
-40℃ to +250℃
Pressure:
≤2.5Mpa
Speed:
≤15m/s
- Material:
-
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M
| Size |
d |
D1 |
D2 |
D3 |
L1 |
L2 |
| (Inch) |
| 0.500 |
12.70 |
25.40 |
13.40 |
23.80 |
23.80 |
7.90 |
| 0.625 |
15.80 |
31.75 |
16.60 |
26.97 |
23.80 |
10.30 |
| 0.750 |
19.00 |
34.93 |
19.70 |
30.15 |
23.80 |
10.30 |
| 0.875 |
22.20 |
38.10 |
22.90 |
33.32 |
23.80 |
10.30 |
| 1.000 |
25.40 |
41.28 |
26.10 |
36.50 |
25.40 |
11.10 |
| 1.125 |
28.50 |
44.45 |
29.30 |
39.67 |
25.40 |
11.10 |
| 1.250 |
31.70 |
47.63 |
32.40 |
42.85 |
25.40 |
11.10 |
| 1.375 |
34.90 |
50.80 |
35.60 |
49.20 |
34.93 |
11.10 |
| 1.500 |
38.10 |
53.98 |
38.80 |
49.20 |
28.58 |
11.10 |
| 1.625 |
41.20 |
60.33 |
42.40 |
57.15 |
29.36 |
12.70 |
| 1.750 |
44.40 |
63.50 |
45.50 |
58.72 |
34.93 |
12.70 |
| 1.875 |
47.60 |
66.68 |
48.70 |
63.50 |
34.93 |
12.70 |
| 2.000 |
50.80 |
69.85 |
51.90 |
66.68 |
34.93 |
12.70 |
| 2.125 |
53.90 |
76.20 |
55.00 |
71.42 |
42.85 |
14.30 |
| 2.250 |
57.10 |
79.38 |
58.20 |
72.21 |
34.93 |
14.30 |
| 2.375 |
60.30 |
82.55 |
61.40 |
76.20 |
42.85 |
14.30 |
| 2.500 |
63.50 |
85.73 |
64.60 |
79.38 |
34.93 |
14.30 |
| 2.625 |
66.60 |
85.73 |
67.70 |
82.55 |
42.85 |
15.90 |
| 2.750 |
69.80 |
88.90 |
70.90 |
85.73 |
42.85 |
15.90 |
| 2.875 |
73.00 |
95.25 |
74.10 |
88.90 |
42.85 |
15.90 |
| 3.000 |
76.20 |
98.43 |
77.30 |
92.08 |
42.85 |
15.90 |
| 3.125 |
79.30 |
101.60 |
80.50 |
95.25 |
42.85 |
19.80 |
| 3.250 |
82.50 |
104.78 |
83.60 |
98.43 |
42.85 |
19.80 |
| 3.375 |
85.70 |
107.95 |
86.80 |
101.60 |
42.85 |
19.80 |
| 3.500 |
88.90 |
111.13 |
90.00 |
104.78 |
42.85 |
19.80 |
| 3.625 |
92.00 |
114.30 |
93.10 |
107.95 |
42.85 |
19.80 |
| 3.750 |
95.20 |
117.48 |
96.30 |
111.13 |
42.85 |
19.80 |
| 3.875 |
98.40 |
120.65 |
99.50 |
114.30 |
42.85 |
19.80 |
| 4.000 |
101.60 |
123.83 |
102.70 |
117.48 |
42.85 |
19.80 |
