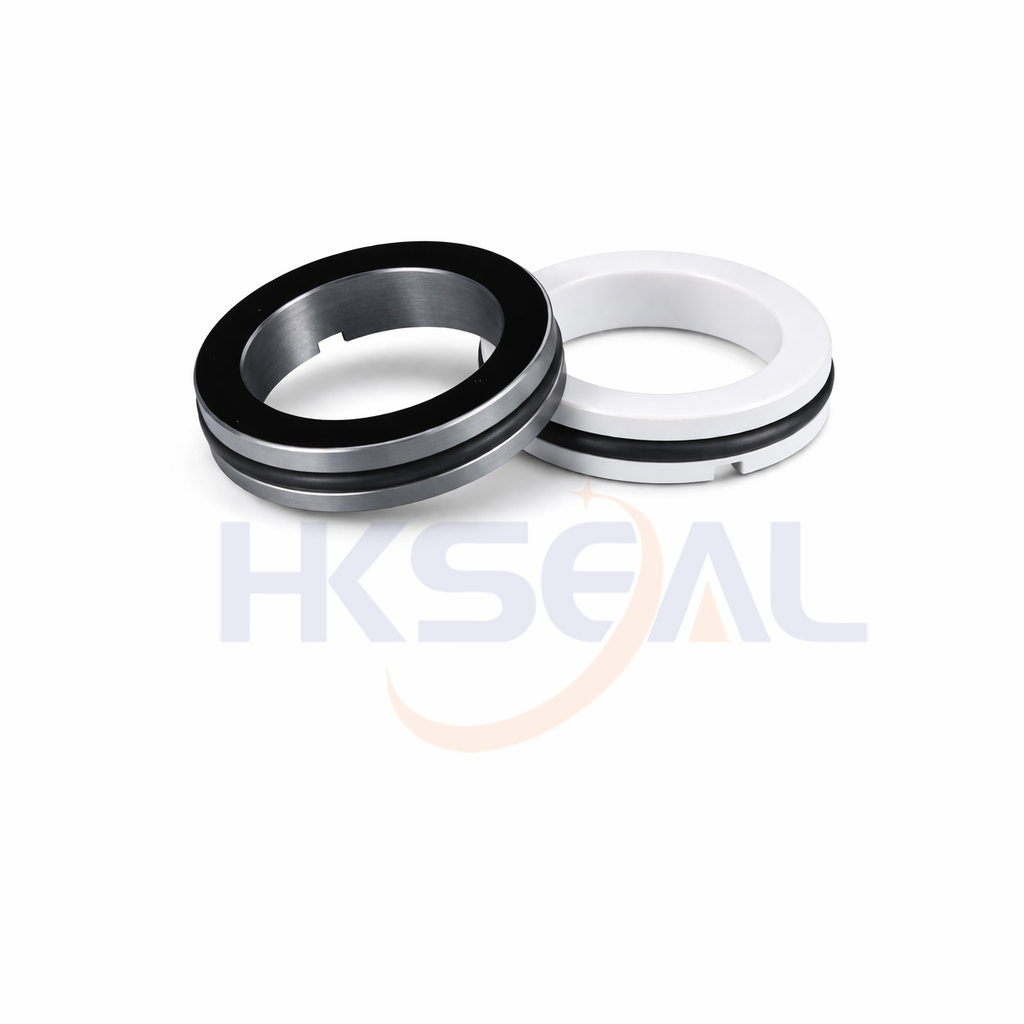

H02
- Type:
-
o-ring mounted seats， with anti-rotation slot，can apply to American standard seals housing dimensins
- Replacement:
-
Vulcan 21,AES S07/S070,Crane W type, Roten W,Flowserve 1 H
- Material:
-
V1,Q1,Q2,U1,U2
| Size |
Size |
D7 |
L4 |
| (inch) |
metric |
| 0.375 |
10 |
24.60 |
8.7 |
| 0.500 |
12,13 |
27.80 |
8.7 |
| 0.625 |
14,15,16 |
30.95 |
10.3 |
| 0.750 |
18,19 |
34.15 |
10.3 |
| 0.813 |
20 |
35.70 |
10.3 |
| 0.875 |
22 |
37.30 |
10.3 |
| 1.000 |
24,25 |
40.50 |
10.3 |
| 0.125 |
28 |
47.65 |
11.9 |
| 1.250 |
30,32 |
50.80 |
11.9 |
| 1.375 |
33,34,35 |
54.00 |
11.9 |
| 1.500 |
38 |
57.15 |
11.9 |
| 1.625 |
40 |
60.35 |
11.9 |
| 1.750 |
43,44,45 |
63.50 |
11.9 |
| 1.875 |
48 |
66.70 |
11.9 |
| 2.000 |
50 |
69.85 |
13.5 |
| 2.125 |
53 |
73.05 |
13.5 |
| 2.250 |
55 |
76.20 |
13.5 |
| 2.375 |
58,60 |
79.40 |
13.5 |
| 2.500 |
63 |
82.55 |
13.5 |
| 2.625 |
65 |
92.05 |
15.9 |
| 2.750 |
68,70 |
95.25 |
15.9 |
| 2.875 |
73 |
98.45 |
15.9 |
| 3.000 |
75 |
101.65 |
15.9 |
| 3.125 |
|
111.15 |
20.0 |
| 3.250 |
80 |
114.30 |
20.0 |
| 3.375 |
85 |
117.50 |
20.0 |
| 3.500 |
|
120.65 |
20.0 |
| 3.625 |
90 |
123.85 |
20.0 |
| 3.750 |
95 |
127.00 |
20.0 |
| 3.875 |
|
130.20 |
20.0 |
| 4.000 |
100 |
133.35 |
20.0 |
