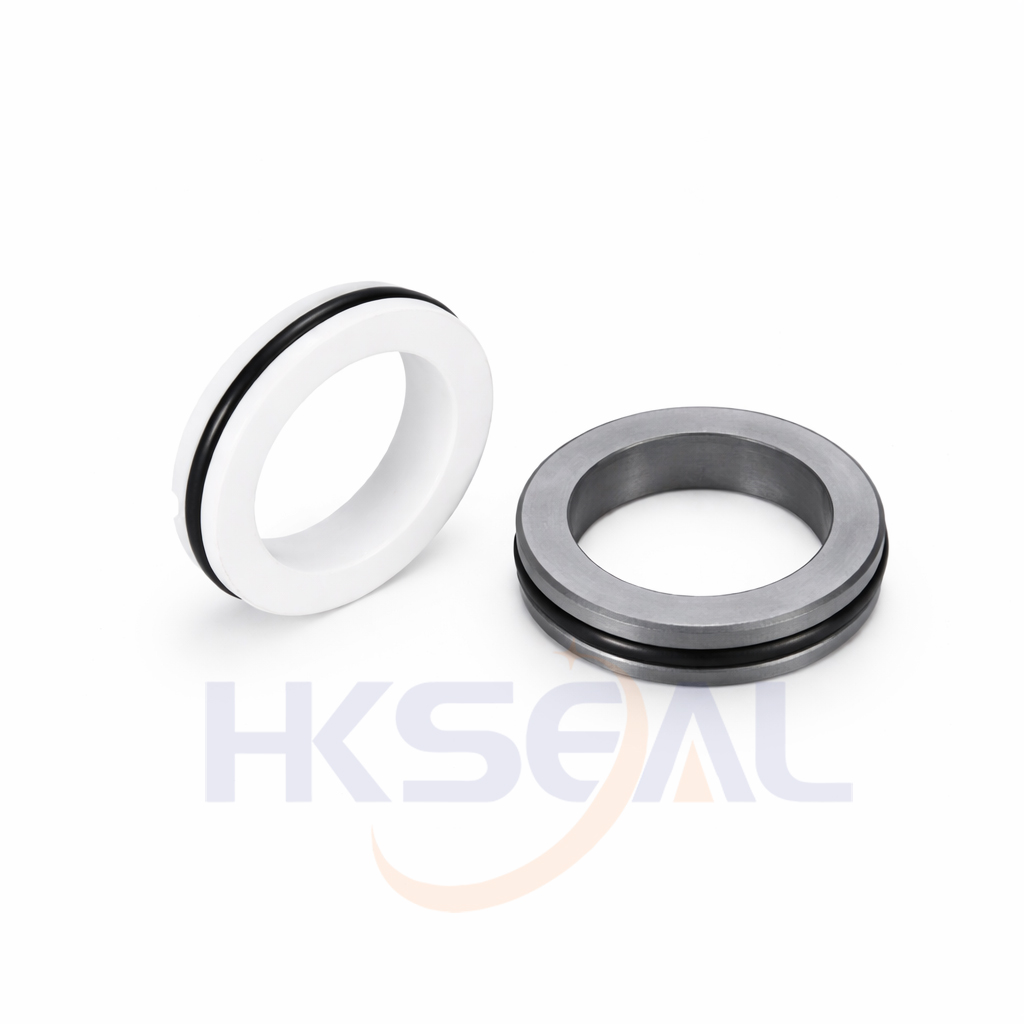

H03
- Type:
-
o-ring mounted seats， with anti-rotation slot，can apply to American standard seals housing dimensins
- Replacement:
-
Vulcan 31,AES S07/S070,Crane W type,Roten W,Flowserve 1H
- Material:
-
V1,Q1,Q2,U1,U2
| Size |
Size |
D7 |
L4 |
| (inch) |
metric |
| 0.375 |
10 |
22.23 |
7.95 |
| 0.500 |
12,13 |
25.40 |
7.95 |
| 0.625 |
14,15,16 |
31.75 |
10.31 |
| 0.750 |
18,19 |
34.93 |
10.31 |
| 0.875 |
20,22 |
38.10 |
10.31 |
| 1.000 |
24,25 |
41.28 |
11.10 |
| 0.125 |
28 |
44.45 |
11.10 |
| 1.250 |
30,32 |
47.63 |
11.10 |
| 1.375 |
35 |
50.80 |
11.10 |
| 1.500 |
38 |
53.98 |
11.10 |
| 1.625 |
40 |
60.33 |
12.70 |
| 1.750 |
43 |
63.50 |
12.70 |
| 1.875 |
45 |
66.68 |
12.70 |
| 2.000 |
48,50 |
69.85 |
12.70 |
| 2.125 |
53 |
76.20 |
14.27 |
| 2.250 |
55 |
79.38 |
14.27 |
| 2.375 |
58,60 |
82.55 |
14.27 |
| 2.500 |
63 |
85.73 |
14.27 |
| 2.625 |
65 |
85.73 |
15.88 |
| 2.750 |
68,70 |
88.90 |
15.88 |
| 2.875 |
73 |
95.25 |
15.88 |
| 3.000 |
75 |
98.43 |
15.88 |
| 3.125 |
|
101.60 |
19.84 |
| 3.250 |
|
104.78 |
19.84 |
| 3.375 |
|
107.95 |
19.84 |
| 3.500 |
|
111.13 |
19.84 |
| 3.625 |
|
114.30 |
19.84 |
| 3.750 |
|
117.48 |
19.84 |
| 3.875 |
|
120.65 |
19.84 |
| 4.000 |
|
123.83 |
19.84 |
|
|
|
