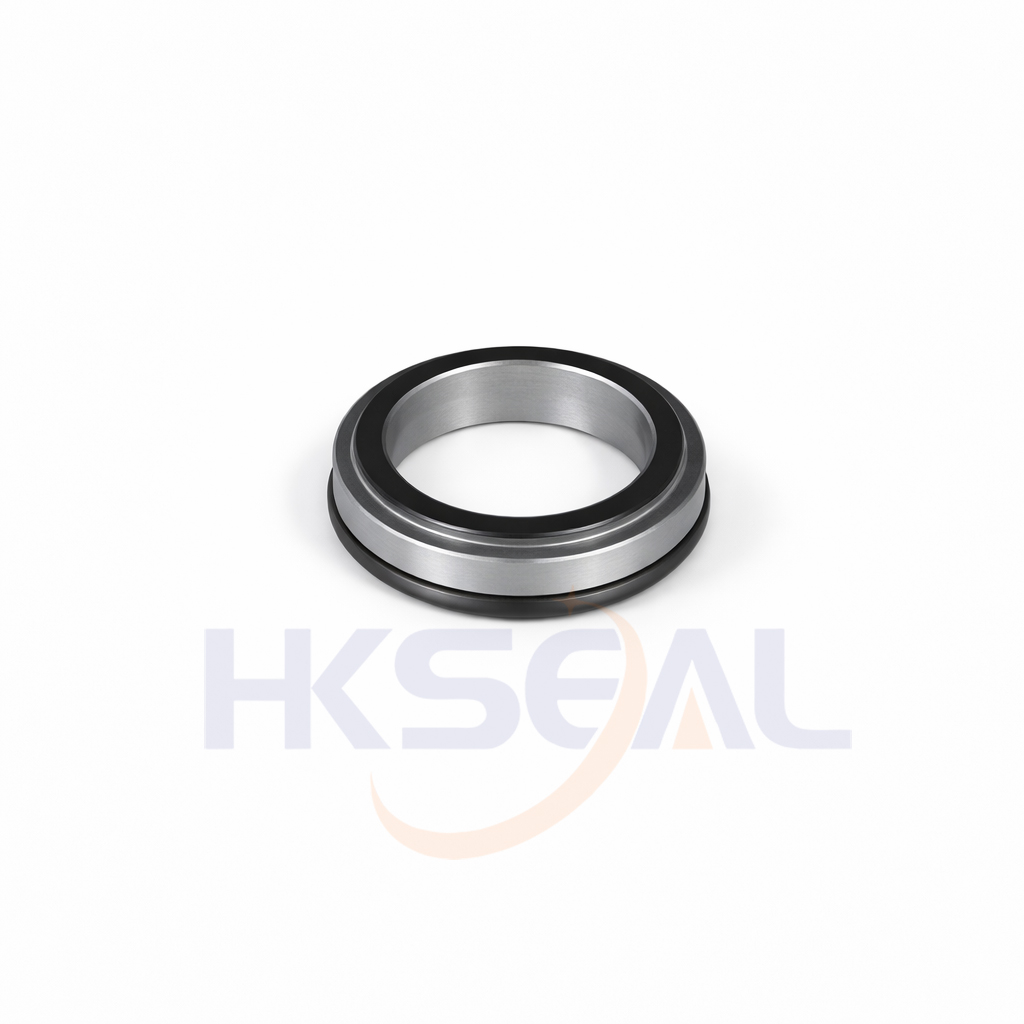

HBC
- Type:
-
O-Ring mounted seats， according with DIN24960 standard，with seat blocked ring and suitable for vacuum application
- Replacement:
-
Crane BC
- Material:
-
V1,Q1,Q2,U1,U2
| SIZE |
D |
D4 |
D6 |
D7 |
L4 |
L8 |
E |
| (mm) |
Undal |
Bal. |
Undal |
Bal. |
| 14 |
30 |
38 |
26.0 |
34.0 |
21.0 |
25 |
12 |
13 |
4.0 |
| 16 |
32 |
40 |
28.0 |
36.0 |
23.0 |
27 |
12 |
13 |
4.0 |
| 18 |
38 |
42 |
34.0 |
38.0 |
27.0 |
33 |
14 |
15 |
4.0 |
| 20 |
40 |
43 |
36.0 |
40.0 |
29.0 |
35 |
14 |
15 |
4.0 |
| 22 |
42 |
46 |
38.0 |
42.0 |
31.0 |
37 |
14 |
15 |
4.0 |
| 24 |
43 |
48 |
40.0 |
44.0 |
33.0 |
39 |
13 |
14 |
4.0 |
| 25 |
46 |
50 |
41.0 |
46.0 |
34.0 |
40 |
13 |
14 |
4.0 |
| 28 |
48 |
53 |
44.0 |
49.0 |
37.0 |
43 |
13 |
14 |
4.0 |
| 30 |
50 |
60 |
46.0 |
51.0 |
39.0 |
45 |
12 |
13 |
4.0 |
| 32 |
53 |
62 |
48.0 |
58.0 |
42.0 |
48 |
12 |
13 |
4.0 |
| 33 |
53 |
62 |
49.0 |
58.0 |
42.0 |
48 |
12 |
13 |
4.0 |
| 35 |
60 |
65 |
51.0 |
60.0 |
44.0 |
50 |
12 |
13 |
4.0 |
| 38 |
62 |
67 |
58.0 |
63.0 |
49.0 |
56 |
13 |
14 |
6.0 |
| 40 |
65 |
70 |
60.0 |
65.0 |
51.0 |
58 |
13 |
14 |
6.0 |
| 43 |
67 |
72 |
63.0 |
68.0 |
54.0 |
61 |
13 |
14 |
6.0 |
| 45 |
70 |
75 |
65.0 |
70.0 |
56.0 |
63 |
13 |
14 |
6.0 |
| 48 |
72 |
77 |
68.0 |
73.0 |
59.0 |
66 |
13 |
14 |
6.0 |
| 50 |
75 |
86 |
70.0 |
75.0 |
62.0 |
70 |
14 |
15 |
6.0 |
| 53 |
77 |
88 |
73.0 |
83.0 |
65.0 |
73 |
14 |
15 |
6.0 |
| 55 |
86 |
91 |
75.0 |
85.0 |
67.0 |
75 |
14 |
15 |
6.0 |
| 58 |
88 |
93 |
83.0 |
88.0 |
70.0 |
78 |
14 |
14 |
6.0 |
| 60 |
91 |
96 |
88.0 |
90.0 |
72.0 |
80 |
14 |
14 |
6.0 |
| 65 |
96 |
103 |
90.0 |
95.0 |
77.0 |
85 |
14 |
14 |
6.0 |
| 68 |
98 |
- |
93.0 |
- |
81.0 |
90 |
14 |
14 |
6.0 |
| 70 |
103 |
108 |
95.0 |
104.0 |
83.0 |
92 |
15 |
15 |
6.0 |
| 75 |
108 |
120 |
104.0 |
109.0 |
88.0 |
97 |
15 |
15 |
6.0 |
| 80 |
120 |
125 |
109.0 |
114.0 |
95.0 |
105 |
15 |
16 |
6.0 |
| 85 |
125 |
130 |
114.0 |
119.0 |
100.0 |
110 |
15 |
16 |
6.0 |
| 90 |
130 |
135 |
119.0 |
124.0 |
105.0 |
115 |
15 |
16 |
6.0 |
| 95 |
135 |
140 |
124.0 |
129.0 |
110.0 |
120 |
15 |
16 |
6.0 |
| 100 |
140 |
145 |
129.0 |
134.0 |
115.0 |
125 |
15 |
16 |
6.0 |
