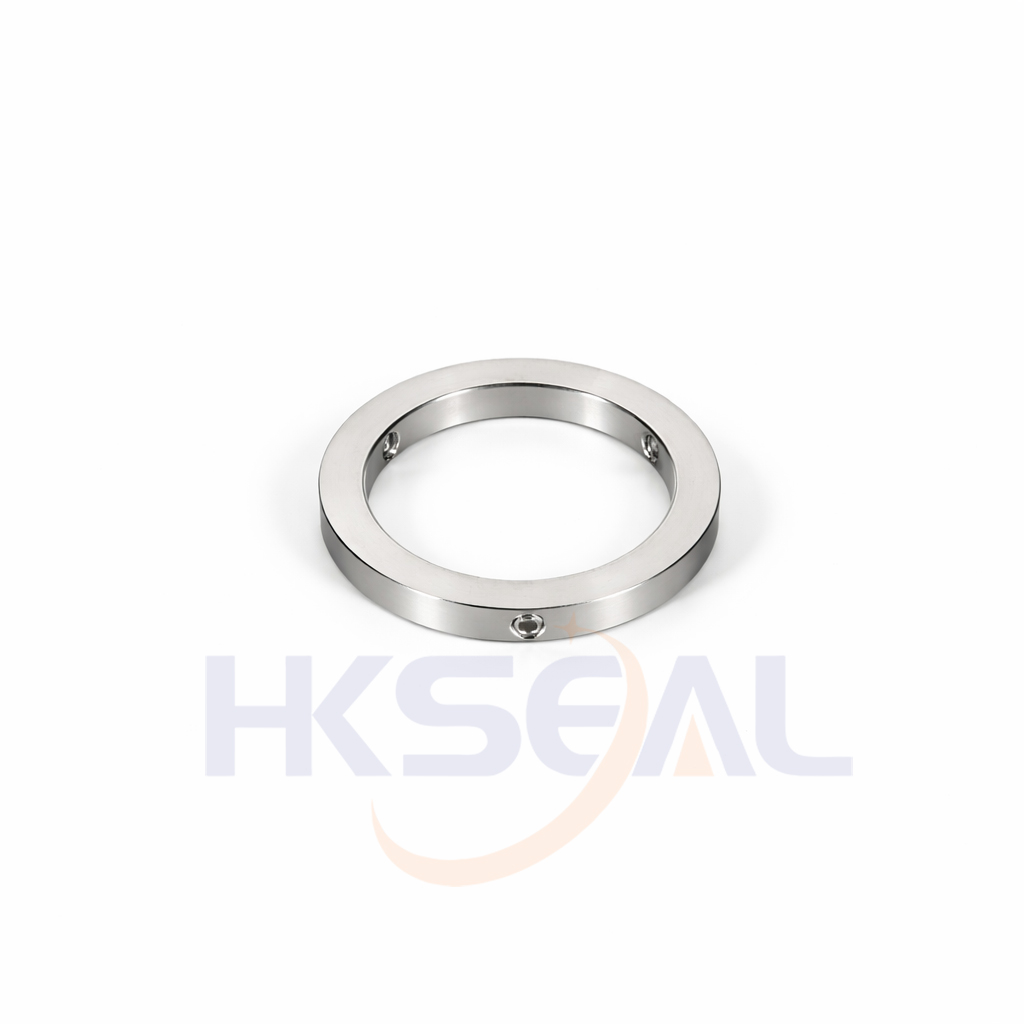

HC01
- Type:
-
Clamp Ring Locking Collars
- Replacement:
-
AES C01
- Material:
-
F,G
| d |
D3 |
L4 |
|
d |
D3 |
L4 |
| mm |
mm |
mm |
|
mm |
mm |
mm |
| 12.0 |
25 |
7.5 |
|
50.0 |
65 |
10 |
| 12.7 |
26 |
7.5 |
|
50.8 |
66 |
10 |
| 14.0 |
27 |
7.5 |
|
52.0 |
67 |
10 |
| 15.0 |
28 |
7.5 |
|
53.0 |
68 |
10 |
| 15.8 |
29 |
7.5 |
|
53.9 |
69 |
10 |
| 16.0 |
29 |
7.5 |
|
55.0 |
70 |
10 |
| 18.0 |
31 |
7.5 |
|
57.1 |
72 |
10 |
| 19.1 |
32 |
7.5 |
|
58.0 |
73 |
10 |
| 20.0 |
33 |
7.5 |
|
60.0 |
79 |
10 |
| 22.0 |
35 |
7.5 |
|
60.3 |
79 |
10 |
| 22.2 |
35 |
7.5 |
|
62.0 |
81 |
10 |
| 24.0 |
37 |
7.5 |
|
63.5 |
83 |
10 |
| 25.0 |
38 |
7.5 |
|
65.0 |
84 |
10 |
| 25.4 |
39 |
7.5 |
|
66.6 |
86 |
10 |
| 28.0 |
41 |
7.5 |
|
68.0 |
87 |
10 |
| 28.6 |
42 |
7.5 |
|
69.8 |
89 |
10 |
| 30.0 |
43 |
7.5 |
|
70.0 |
89 |
10 |
| 31.7 |
45 |
7.5 |
|
73.0 |
95 |
12 |
| 32.0 |
45 |
7.5 |
|
75.0 |
97 |
12 |
| 34.9 |
48 |
7.5 |
|
76.2 |
98 |
12 |
| 35.0 |
48 |
7.5 |
|
80.0 |
102 |
12 |
| 38.0 |
53 |
10 |
|
82.5 |
105 |
12 |
| 38.1 |
53 |
10 |
|
85.0 |
107 |
12 |
| 40.0 |
55 |
10 |
|
88.9 |
111 |
12 |
| 41.2 |
56 |
10 |
|
90.0 |
112 |
12 |
| 42.0 |
57 |
10 |
|
95.0 |
117 |
12 |
| 43.0 |
58 |
10 |
|
100.0 |
122 |
12 |
| 44.4 |
60 |
10 |
|
101.6 |
124 |
12 |
| 45.0 |
60 |
10 |
|
105.0 |
127 |
12 |
| 47.6 |
63 |
10 |
|
110.0 |
132 |
12 |
| 48.0 |
63 |
10 |
|
115.0 |
137 |
12 |
