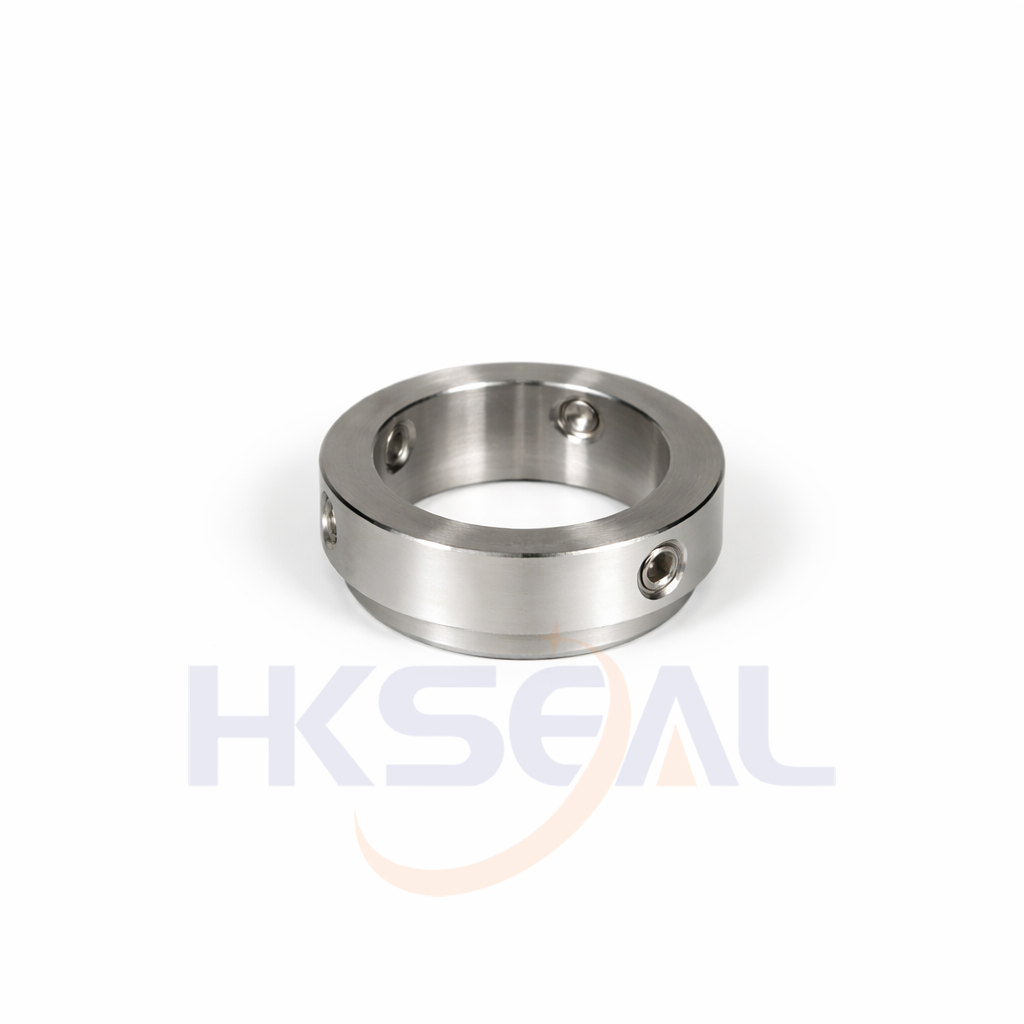

HC03
-
Type:
-
Split ring and washer for use with AES P08(our CO-POB)
- Replacement:
-
AES C02
- Material:
-
F,G
| d |
D3 |
L1 |
L2 |
|
d |
D3 |
L1 |
L2 |
| mm |
|
mm |
| 12.0 |
21 |
1.5 |
7.5 |
|
50.0 |
65 |
2.0 |
9.0 |
| 12.7 |
21 |
1.5 |
7.5 |
|
50.8 |
65 |
3.0 |
12.0 |
| 14.0 |
23 |
1.5 |
7.5 |
|
52.0 |
67 |
3.0 |
12.0 |
| 15.0 |
24 |
1.5 |
7.5 |
|
53.0 |
68 |
3.0 |
12.0 |
| 15.8 |
25 |
1.5 |
7.5 |
|
53.9 |
68 |
3.0 |
12.0 |
| 16.0 |
25 |
1.5 |
7.5 |
|
55.0 |
70 |
3.0 |
12.0 |
| 18.0 |
31 |
1.5 |
7.5 |
|
57.1 |
70 |
3.0 |
12.0 |
| 19.1 |
31 |
1.5 |
7.5 |
|
58.0 |
73 |
3.0 |
12.0 |
| 20.0 |
33 |
1.5 |
7.5 |
|
60.0 |
79 |
3.0 |
12.0 |
| 22.0 |
35 |
1.5 |
7.5 |
|
60.3 |
79 |
3.0 |
12.0 |
| 22.2 |
35 |
1.5 |
7.5 |
|
62.0 |
81 |
3.0 |
12.0 |
| 24.0 |
37 |
1.5 |
7.5 |
|
63.5 |
82 |
3.0 |
12.0 |
| 25.0 |
38 |
1.5 |
7.5 |
|
65.0 |
84 |
3.0 |
12.0 |
| 25.4 |
38 |
1.5 |
7.5 |
|
66.6 |
84 |
3.0 |
12.0 |
| 28.0 |
41 |
2.0 |
9.0 |
|
68.0 |
87 |
3.0 |
12.0 |
| 28.6 |
41 |
2.0 |
9.0 |
|
69.8 |
89 |
3.0 |
12.0 |
| 30.0 |
43 |
2.0 |
9.0 |
|
70.0 |
89 |
3.0 |
12.0 |
| 31.7 |
45 |
2.0 |
9.0 |
|
73.0 |
95 |
3.0 |
12.0 |
| 32.0 |
45 |
2.0 |
9.0 |
|
75.0 |
98 |
3.0 |
12.0 |
| 34.9 |
48 |
2.0 |
9.0 |
|
76.2 |
98 |
3.0 |
15.0 |
| 35.0 |
48 |
2.0 |
9.0 |
|
80.0 |
102 |
3.0 |
15.0 |
| 38.0 |
53 |
2.0 |
9.0 |
|
82.5 |
105 |
3.0 |
15.0 |
| 38.1 |
53 |
2.0 |
9.0 |
|
85.0 |
107 |
3.0 |
15.0 |
| 40.0 |
55 |
2.0 |
9.0 |
|
88.9 |
111 |
3.0 |
15.0 |
| 41.2 |
55 |
2.0 |
9.0 |
|
90.0 |
112 |
3.0 |
15.0 |
| 42.0 |
57 |
2.0 |
9.0 |
|
95.0 |
117 |
3.0 |
15.0 |
| 43.0 |
58 |
2.0 |
9.0 |
|
100.0 |
122 |
3.0 |
20.0 |
| 44.4 |
60 |
2.0 |
9.0 |
|
101.6 |
124 |
3.0 |
20.0 |
| 45.0 |
60 |
2.0 |
9.0 |
|
105.0 |
127 |
3.0 |
20.0 |
| 47.6 |
63 |
2.0 |
9.0 |
|
110.0 |
132 |
3.0 |
20.0 |
| 48.0 |
63 |
2.0 |
9.0 |
|
115.0 |
137 |
3.0 |
20.0 |
