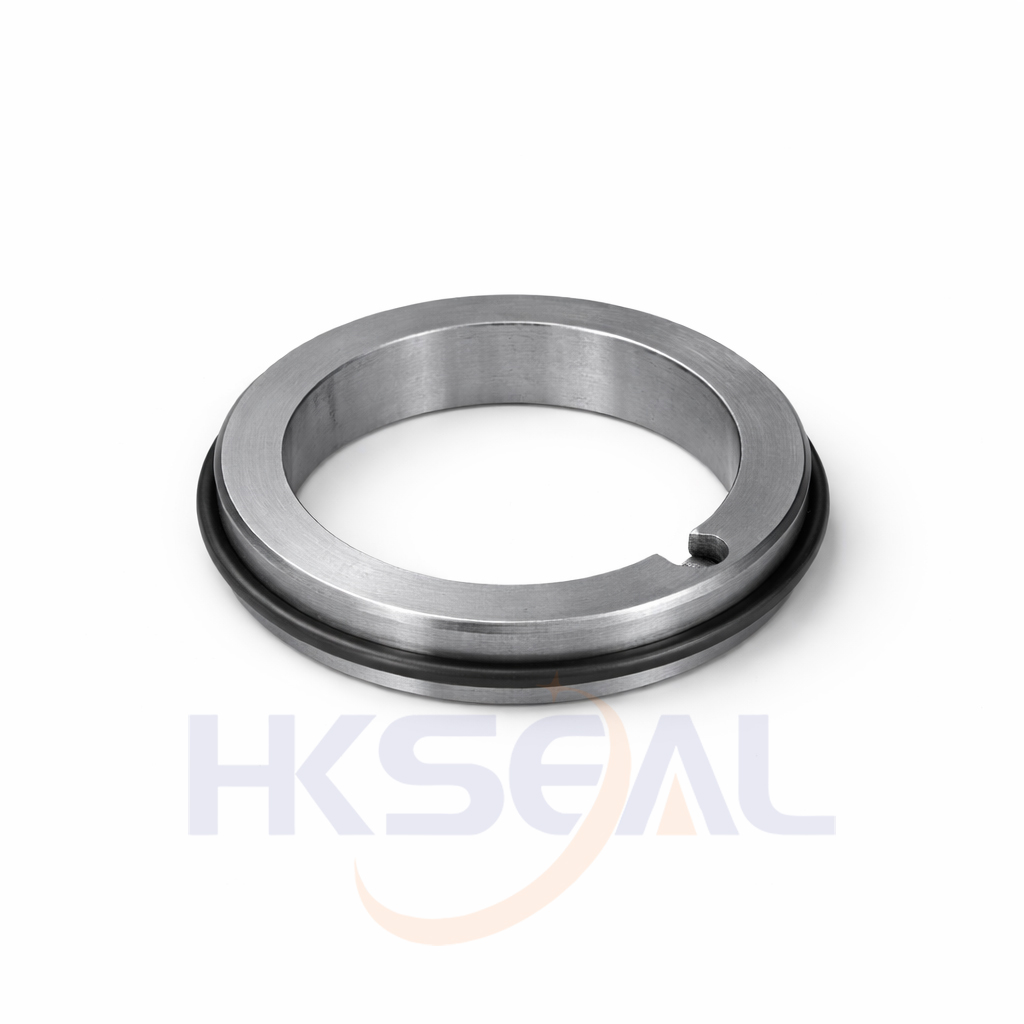

HN
- Type:
-
o-ring mounted seats OD，with anti-rotation pin，using standard dimensions.
- Replacement:
-
Crane PG
- Material:
-
Q1,Q2,U1,U2
| Size |
D6 |
D7 |
L4 |
| (inch) |
| 0.500 |
14.00 |
25.60 |
7.92 |
| 0.625 |
17.50 |
31.95 |
10.31 |
| 0.750 |
21.00 |
35.12 |
10.31 |
| 0.875 |
24.00 |
38.30 |
10.31 |
| 1.000 |
27.50 |
41.48 |
11.10 |
| 1.125 |
30.50 |
44.65 |
11.10 |
| 1.250 |
33.50 |
47.83 |
11.10 |
| 1.375 |
37.00 |
51.00 |
11.10 |
| 1.500 |
40.00 |
54.18 |
11.10 |
| 1.625 |
43.50 |
60.53 |
12.70 |
| 1.750 |
46.50 |
63.70 |
12.70 |
| 1.875 |
49.50 |
66.88 |
12.70 |
| 2.000 |
53.00 |
70.05 |
12.70 |
| 2.125 |
56.00 |
76.40 |
14.27 |
| 2.250 |
59.00 |
79.58 |
14.27 |
| 2.375 |
62.50 |
82.75 |
14.27 |
| 2.500 |
65.50 |
85.93 |
14.27 |
| 2.625 |
68.50 |
85.93 |
15.88 |
| 2.750 |
72.00 |
89.10 |
15.88 |
| 2.875 |
75.00 |
95.45 |
15.88 |
| 3.000 |
78.50 |
98.63 |
15.88 |
| 3.125 |
81.50 |
101.80 |
19.84 |
| 3.250 |
84.50 |
104.98 |
19.84 |
| 3.375 |
88.00 |
108.15 |
19.84 |
| 3.500 |
91.00 |
111.33 |
19.84 |
| 3.625 |
94.00 |
114.50 |
19.84 |
| 3.750 |
97.50 |
117.68 |
19.84 |
| 3.875 |
100.50 |
120.85 |
19.84 |
| 4.000 |
103.50 |
124.03 |
19.84 |
