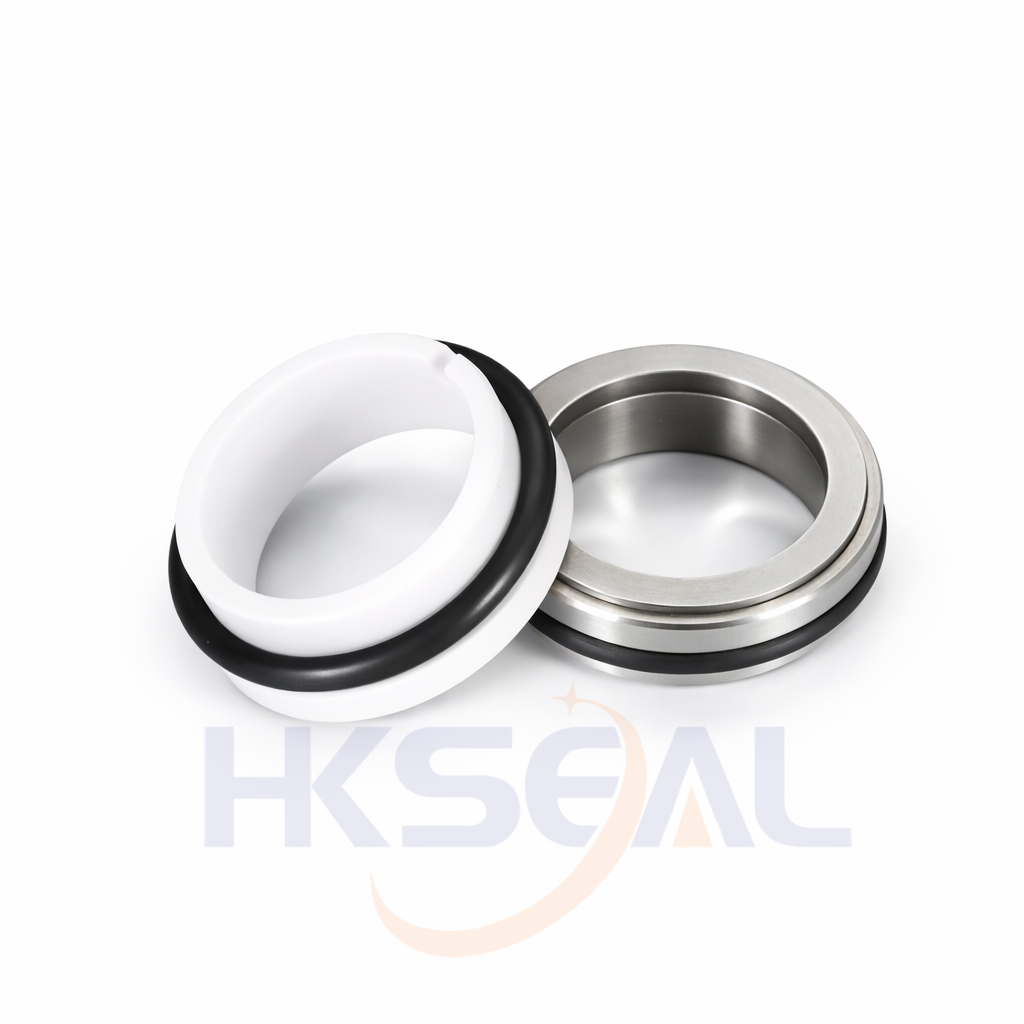

HS5
- Type:
-
o-ring mounted seats，with stangard dimensions
- Replacement:
-
Burgmann S5,AES S01SL
- Material:
-
V1,Q1,Q2,U1,U2.
| Size |
D6 |
D7 |
L4 |
| (mm) |
| 10 |
15.5 |
19.2 |
5.6 |
| 12 |
17.5 |
21.6 |
5.6 |
| 14 |
20.5 |
24.6 |
6.6 |
| 15 |
20.5 |
24.6 |
6.6 |
| 16 |
22.0 |
28.0 |
7.0 |
| 18 |
24.0 |
30.0 |
8.0 |
| 19 |
29.5 |
35.0 |
7.5 |
| 20 |
29.5 |
35.0 |
7.5 |
| 22 |
29.5 |
35.0 |
7.5 |
| 24 |
32.0 |
38.0 |
7.5 |
| 25 |
32.0 |
38.0 |
7.5 |
| 26 |
34.0 |
38.0 |
7.5 |
| 28 |
36.0 |
42.0 |
9.0 |
| 30 |
39.2 |
45.0 |
10.5 |
| 32 |
42.2 |
48.0 |
10.5 |
| 35 |
46.2 |
52.0 |
11.0 |
| 38 |
49.2 |
55.0 |
10.3 |
| 40 |
52.2 |
58.0 |
10.8 |
| 42 |
53.3 |
62.0 |
12.2 |
| 45 |
55.3 |
64.0 |
11.8 |
| 48 |
59.7 |
68.4 |
11.8 |
| 50 |
60.8 |
69.3 |
11.8 |
| 55 |
66.5 |
75.4 |
13.5 |
| 58 |
69.5 |
78.4 |
13.5 |
| 60 |
71.5 |
80.4 |
13.5 |
| 65 |
76.5 |
85.4 |
13.2 |
| 68 |
82.7 |
91.5 |
13.7 |
| 70 |
83.0 |
92.0 |
13.2 |
| 75 |
90.2 |
99.0 |
14.2 |
| 80 |
95.2 |
104.0 |
15.2 |
