HT12-T12D
-
Type:
-

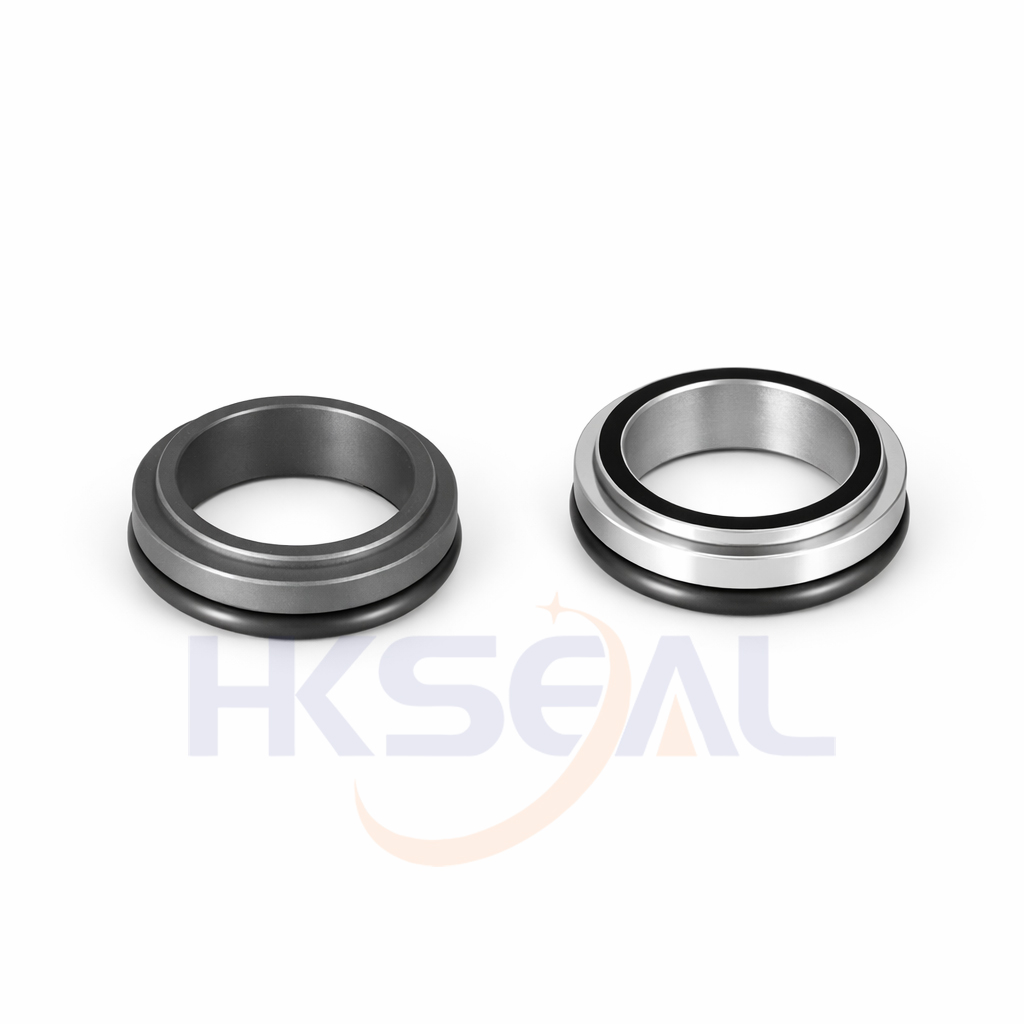

o-ring mounted seats，with standard dimensions.
according with EN12756 Standard
- Replacement:
-
Vulcan 12, Vulcan 12 DIN
- Material:
-
B,V1,Q1,Q2,U1,U2
Type
-
O-Ring mounted seats，
:
.jpg)
| Size |
HT12 |
HT12D |
| D6 |
D7 |
L4 |
L8 |
D6 |
D7 |
L4 |
L8 |
| 10 |
14.0 |
18.1 |
5.5 |
7.0 |
17 |
21 |
7 |
10.0 |
| 11 |
16.5 |
20.6 |
5.5 |
7.0 |
|
|
|
|
| 12 |
16.5 |
20.6 |
5.5 |
7.0 |
19 |
23 |
7 |
10.0 |
| 13 |
19.0 |
23.1 |
6.0 |
7.5 |
|
|
|
|
| 14 |
19.0 |
23.1 |
6.0 |
7.5 |
21 |
25 |
7 |
12.6 |
| 15 |
21.0 |
26.9 |
7.0 |
9.0 |
|
|
|
|
| 16 |
21.0 |
26.6 |
7.0 |
9.0 |
23 |
27 |
7 |
12.6 |
| 17 |
25.0 |
26.9 |
7.0 |
9.0 |
|
|
|
|
| 18 |
25.0 |
30.9 |
8.0 |
9.5 |
27 |
33 |
10 |
12.6 |
| 19 |
25.0 |
30.9 |
8.0 |
9.5 |
|
|
|
|
| 20 |
30.0 |
30.9 |
8.0 |
9.5 |
29 |
35 |
10 |
12.6 |
| 21 |
30.0 |
35.4 |
8.0 |
9.5 |
|
|
|
|
| 22 |
30.0 |
35.4 |
8.0 |
9.5 |
31 |
37 |
10 |
12.6 |
| 23 |
30.0 |
35.4 |
8.0 |
9.5 |
|
|
|
|
| 24 |
30.0 |
35.4 |
8.0 |
9.5 |
33 |
39 |
10 |
12.6 |
| 25 |
33.0 |
38.2 |
8.5 |
9.5 |
34 |
40 |
10 |
12.6 |
| 26 |
33.0 |
38.2 |
8.5 |
11.0 |
|
|
|
|
| 28 |
38.0 |
43.3 |
9.0 |
11.0 |
37 |
43 |
10 |
12.6 |
| 30 |
38.0 |
43.3 |
9.0 |
11.0 |
39 |
45 |
10 |
12.6 |
| 32 |
38.0 |
43.3 |
9.0 |
11.0 |
42 |
48 |
10 |
12.6 |
| 33 |
45.0 |
53.5 |
11.5 |
13.0 |
42 |
48 |
10 |
12.6 |
| 35 |
45.0 |
53.5 |
11.5 |
13.0 |
44 |
50 |
10 |
12.6 |
| 38 |
52.0 |
60.5 |
11.5 |
13.0 |
49 |
56 |
13 |
15.4 |
| 40 |
52.0 |
60.5 |
11.5 |
13.0 |
51 |
58 |
13 |
15.4 |
| 42 |
52.0 |
60.5 |
11.5 |
13.0 |
|
|
|
|
| 43 |
52.0 |
60.5 |
11.5 |
13.0 |
54 |
61 |
13 |
15.4 |
| 44 |
57.0 |
65.5 |
11.5 |
13.0 |
|
|
|
|
| 45 |
57.0 |
65.5 |
11.5 |
13.0 |
56 |
63 |
13 |
15.4 |
| 48 |
57.0 |
65.5 |
11.5 |
13.5 |
59 |
66 |
13 |
15.4 |
| 50 |
64.0 |
72.5 |
11.5 |
13.5 |
62 |
70 |
14 |
16.6 |
| 53 |
|
|
|
13.5 |
65 |
73 |
14 |
16.6 |
| 55 |
72.0 |
72.5 |
11.5 |
13.5 |
67 |
75 |
14 |
16.6 |
| 58 |
|
|
|
13.5 |
70 |
78 |
14 |
16.6 |
| 60 |
72.0 |
79.3 |
11.5 |
13.5 |
72 |
80 |
14 |
16.6 |
| 63 |
|
|
|
13.5 |
75 |
83 |
14 |
16.6 |
| 65 |
77.0 |
84.5 |
11.5 |
13.5 |
77 |
85 |
14 |
17.1 |
| 68 |
|
|
|
13.5 |
81 |
90 |
14 |
18.6 |
| 70 |
82.0 |
89.5 |
11.5 |
13.5 |
83 |
92 |
16 |
18.3 |
| 75 |
87.0 |
94.5 |
11.5 |
13.5 |
88 |
97 |
16 |
18.3 |
| 80 |
92.0 |
99.5 |
11.5 |
13.5 |
95 |
105 |
18 |
20.0 |
| 85 |
98.0 |
105.5 |
13.5 |
15.5 |
100 |
110 |
18 |
20.0 |
| 90 |
105.0 |
111.5 |
13.5 |
15.5 |
105 |
115 |
18 |
20.0 |
| 95 |
110.0 |
116.5 |
13.5 |
15.5 |
110 |
120 |
18 |
20.0 |
| 100 |
114.0 |
119.5 |
13.5 |
15.5 |
115 |
125 |
18 |
20.0 |
