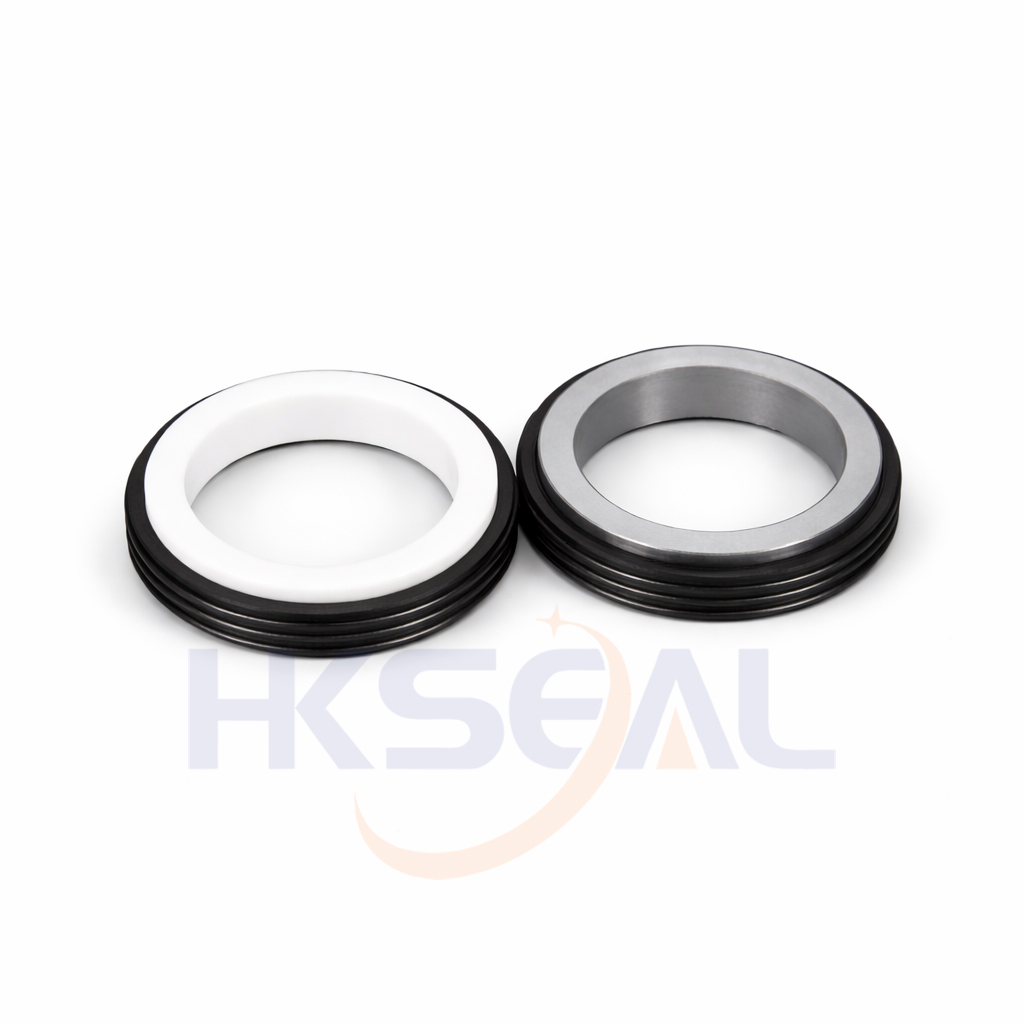

HT24
-
Type:
-
Cup mounted seats，according with DIN24960 standard
- Replacement:
-
Vulcan 24,AES S04,Crane N(Din)
- Material:
-
V1,Q1,Q2,U1,U2
| Size |
D6 |
D7 |
L4 |
| (mm) |
| 10 |
17 |
21 |
8.6 |
| 12 |
19 |
23 |
8.6 |
| 14 |
21 |
25 |
8.6 |
| 16 |
23 |
27 |
10.0 |
| 18 |
27 |
33 |
10.0 |
| 20 |
29 |
35 |
10.0 |
| 22 |
31 |
37 |
10.0 |
| 24 |
33 |
39 |
10.0 |
| 25 |
34 |
40 |
10.0 |
| 28 |
37 |
43 |
10.0 |
| 30 |
39 |
45 |
10.0 |
| 32 |
42 |
48 |
10.0 |
| 33 |
42 |
48 |
10.0 |
| 35 |
44 |
50 |
10.0 |
| 38 |
49 |
56 |
11.0 |
| 40 |
51 |
58 |
11.0 |
| 43 |
54 |
61 |
11.0 |
| 45 |
56 |
63 |
11.0 |
| 48 |
59 |
66 |
11.0 |
| 50 |
62 |
70 |
13.0 |
| 53 |
65 |
73 |
13.0 |
| 55 |
67 |
75 |
13.0 |
| 58 |
70 |
78 |
13.0 |
| 60 |
72 |
80 |
13.0 |
| 63 |
75 |
83 |
13.0 |
| 65 |
77 |
85 |
13.0 |
| 68 |
81 |
90 |
13.0 |
| 70 |
83 |
92 |
15.3 |
| 75 |
88 |
97 |
15.3 |
| 80 |
95 |
105 |
15.3 |
| 85 |
100 |
110 |
15.7 |
| 90 |
105 |
115 |
15.7 |
| 95 |
110 |
120 |
15.7 |
| 100 |
115 |
125 |
15.7 |
