HT25
- Type:
-

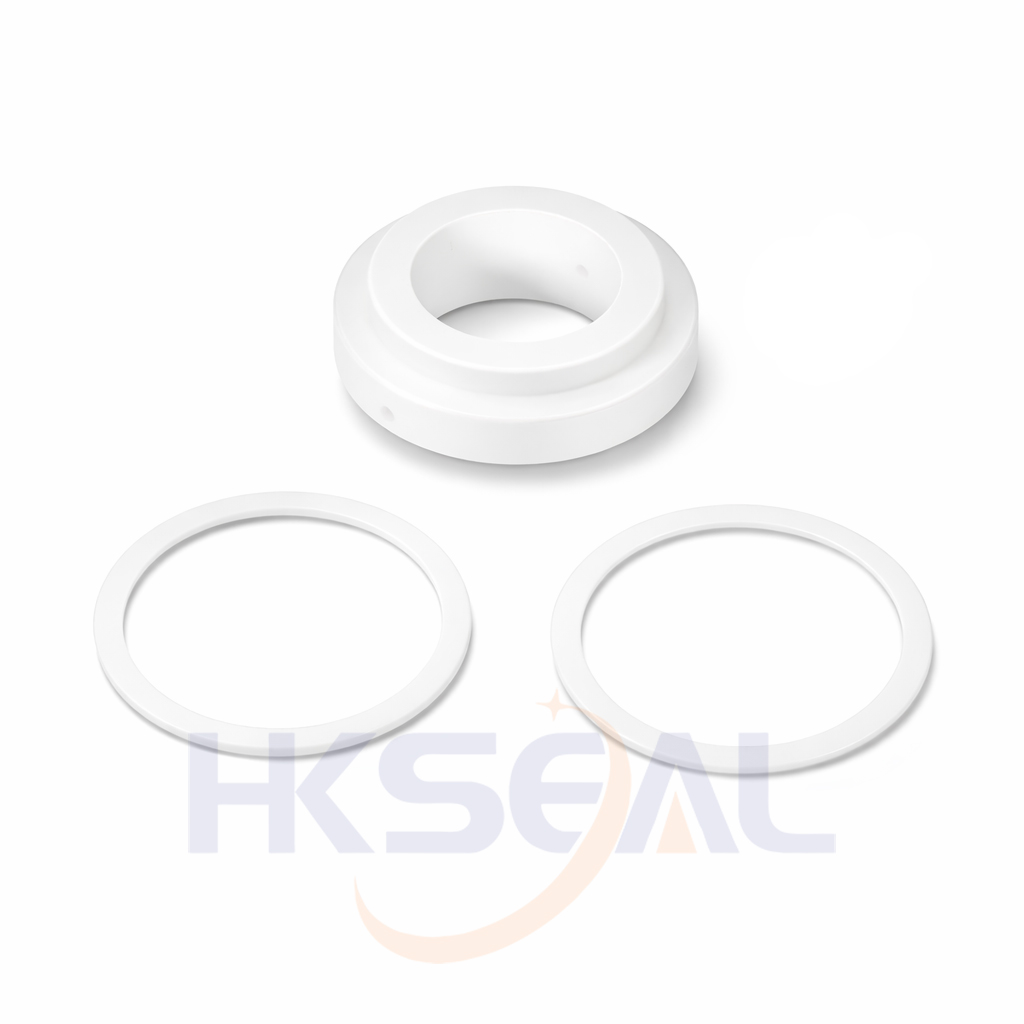

the seat with two PTFE gaskets should be clamped structure.it can be fitted in various types of mechanical seals
- Replacement:
-
Vulcan 25,AES S08/S080,Crane V,Roten V
- Material:
-
V1,Q1,Q2
| d (inch) |
D1 |
D6 |
L1 |
L2 |
| 0.500 |
13.7 |
29.1 |
17.4 |
7.9 |
| 0.625 |
16.8 |
33.0 |
17.4 |
7.9 |
| 0.750 |
20.0 |
36.2 |
17.4 |
7.9 |
| 0.875 |
23.2 |
39.9 |
17.4 |
7.9 |
| 1.000 |
26.4 |
42.6 |
17.4 |
7.9 |
| 1.125 |
29.6 |
45.7 |
26.9 |
11.1 |
| 1.250 |
32.7 |
50.5 |
26.9 |
11.1 |
| 1.375 |
36.0 |
53.7 |
26.9 |
11.1 |
| 1.500 |
39.1 |
56.9 |
26.9 |
11.1 |
| 1.625 |
42.2 |
63.2 |
26.9 |
11.1 |
| 1.750 |
45.4 |
66.4 |
26.9 |
11.1 |
| 1.875 |
49.0 |
69.6 |
26.9 |
11.1 |
| 2.000 |
51.8 |
72.7 |
26.9 |
11.1 |
| 2.125 |
54.9 |
79.1 |
33.3 |
14.3 |
| 2.250 |
58.1 |
82.3 |
33.3 |
14.3 |
| 2.375 |
61.3 |
85.4 |
33.3 |
14.3 |
| 2.500 |
64.5 |
88.6 |
33.3 |
14.3 |
| 2.625 |
67.6 |
91.8 |
33.3 |
14.3 |
| 2.750 |
71.0 |
94.9 |
33.3 |
14.3 |
| 2.875 |
74.0 |
98.1 |
33.3 |
14.3 |
| 3.000 |
77.2 |
99.7 |
33.3 |
14.3 |
| 3.125 |
80.4 |
102.9 |
33.3 |
14.3 |
| 3.500 |
89.9 |
114.0 |
34.3 |
14.3 |
| 3.750 |
96.3 |
120.4 |
34.3 |
14.3 |
| 4.000 |
102.6 |
126.7 |
34.3 |
14.3 |
| 4.125 |
106.0 |
139.9 |
36.0 |
16.0 |
| 4.500 |
115.3 |
139.4 |
34.3 |
14.3 |
| 5.000 |
140.7 |
177.5 |
36.0 |
16.0 |
